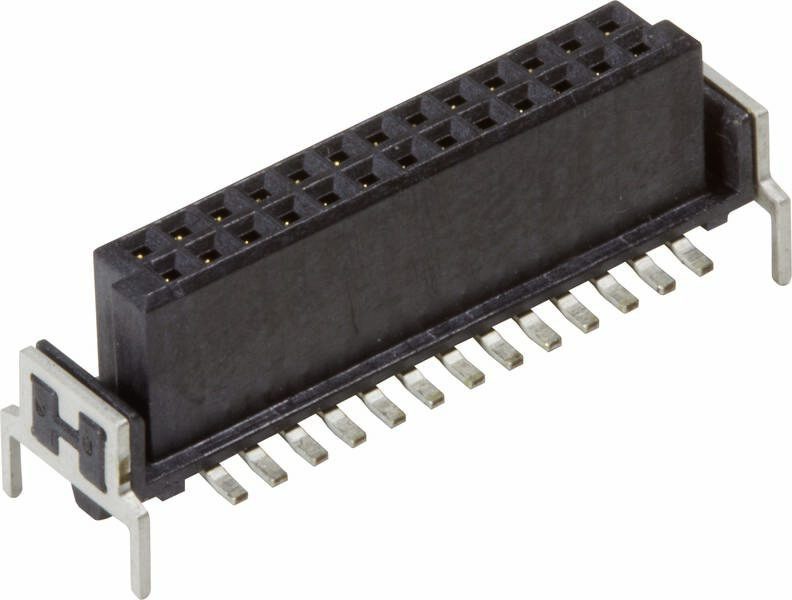

HARTING 15210262401333 Edge connector (sockets) No. of rows 2 1 pc(s)
Product type
Edge connector (sockets)
Connector type
straight
CS
1.27 mm
Content
1 pc(s)
Total number of pins
26
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Terminal block
- Total number of pins 26
- No. of rows 2
- Content 1 pc(s)
Technical specifications
- Range: Har-flex®
- Component: Terminal block
- Contact description: Straight
- Connection type: Reflow soldering connection (THR)
- Type of connection: Motherboard to Daughtercard;mezzanine
- Number of contacts: 26
- Plug contact series 2
- Pitch, connection side 1.27 mm
- Insulation resistance >109 Ω
- Constant resistance < 25 mΩ
- Temperature limit: -55 ... +125 °C
- Mating cycles ≥ 500
- Test voltage Ueff 0.5 kV
- Insulation material group IIIa (175 ≤ CTI < 400)
- Material application: Liquid-crystal polymer (LCP)
- Material contacts: Copper alloy
- Contact surface: Precious metal via Ni, plug side, Sn via Ni connection side
- Material flammability class acc. To UL 94: V-0
- Net weight: 0.8 g
- Name: Signal
- Pitch, plug-side 1.27 mm
- Airway: ≥ 0.4 mm
- Creepage distance ≥ 0.4 mm
- Stack height 6.25 mm
- Product type
Edge connector (sockets)
- Connector type
straight
- Total number of pins
26
- No. of rows
2
- CS
1.27 mm
- Connection
THR
- Case material
PA
- Manufacturer part #
15210262401333
- Content
1 pc(s)
- Contact material
Copper alloy
- Type
15 21 026 2401 333
- Resistance
25 mΩ
- Insulation resistance
109 Ω
Other
26
Other
-55-125 °C
Other
Soldering connection
Tin
1.27 mm
2
1.27 mm
Liquid crystal polymer
90° (upwards vertical)
Other
Documents & Downloads
Datasheet
Datasheet 2999834 HARTING 15210262401333 Edge connector (sockets) No. of rows 2 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2999834 HARTING 15210262401333 Edge connector (sockets) No. of rows 2 1 pc(s)
Description
Terminal block, reflow solder connection (THR), contacts: 26, straight, copper alloy, Precious metal over Ni connector side, Sn over Ni side
