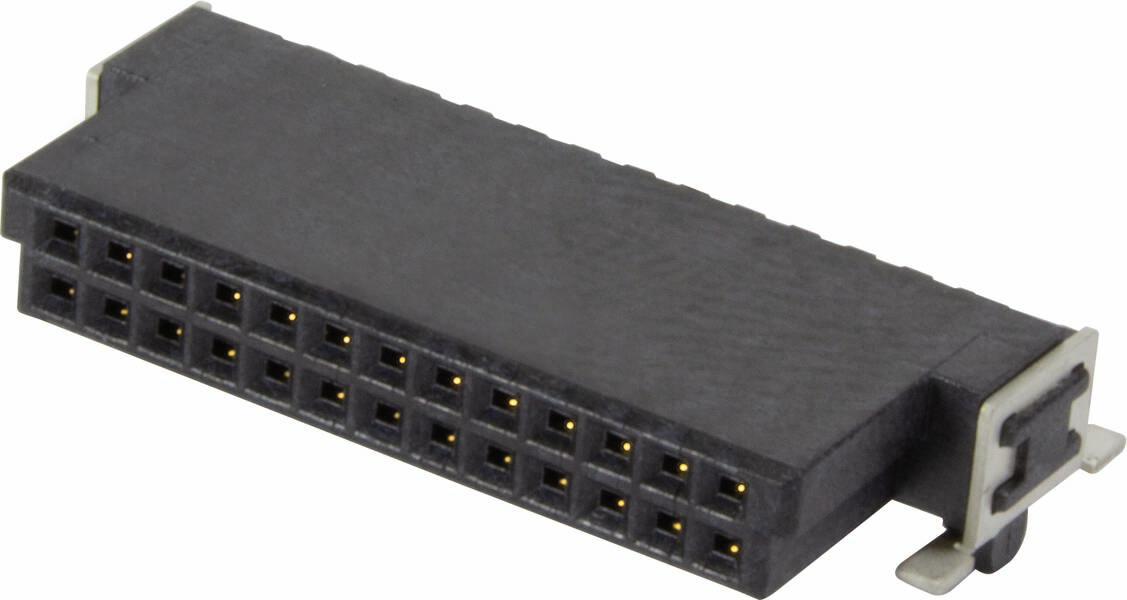

HARTING 15250802601333 Edge connector (sockets) No. of rows 2 1 pc(s)
Product type
Edge connector (sockets)
Connector type
right angle
CS
1.27 mm
Content
1 pc(s)
Total number of pins
80
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Total number of pins 80
- No. of rows 2
- Content 1 pc(s)
Technical specifications
- Product type
Edge connector (sockets)
- Connector type
right angle
- Total number of pins
80
- No. of rows
2
- CS
1.27 mm
- Connection
SMT
- Case material
PA
- Manufacturer part #
15250802601333
- Content
1 pc(s)
- Contact material
Copper alloy
- Type
15 25 080 2601 333
Other
80
Other
-55-125 °C
Other
Soldering connection
Tin
1.27 mm
2
1.27 mm
Liquid crystal polymer
0°/180° (horizontal)
Other
