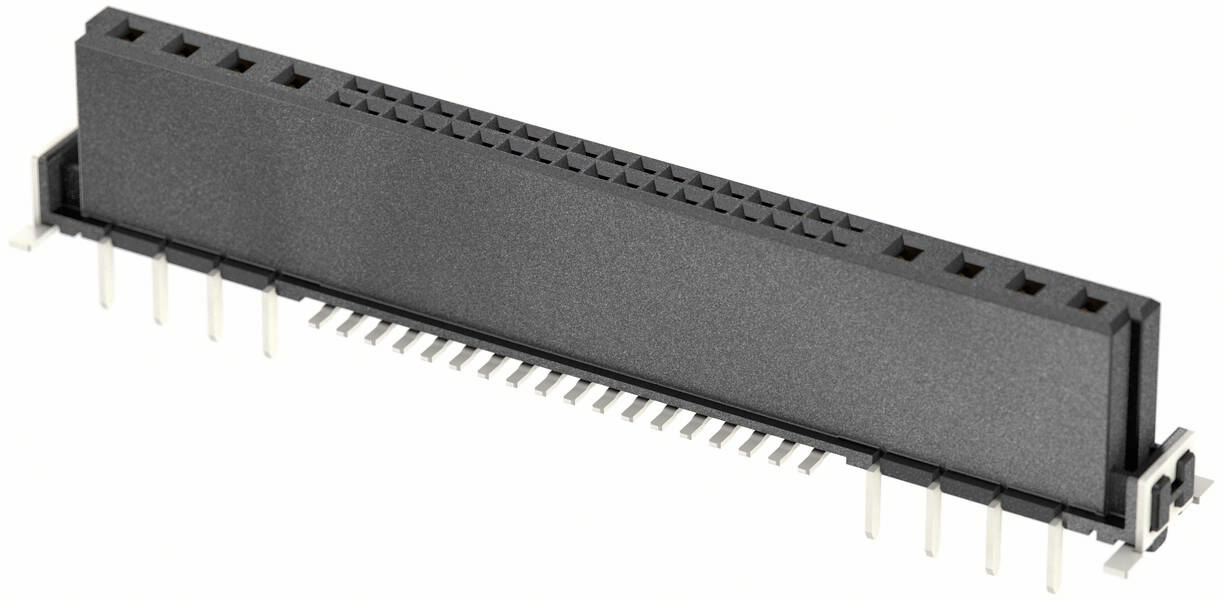

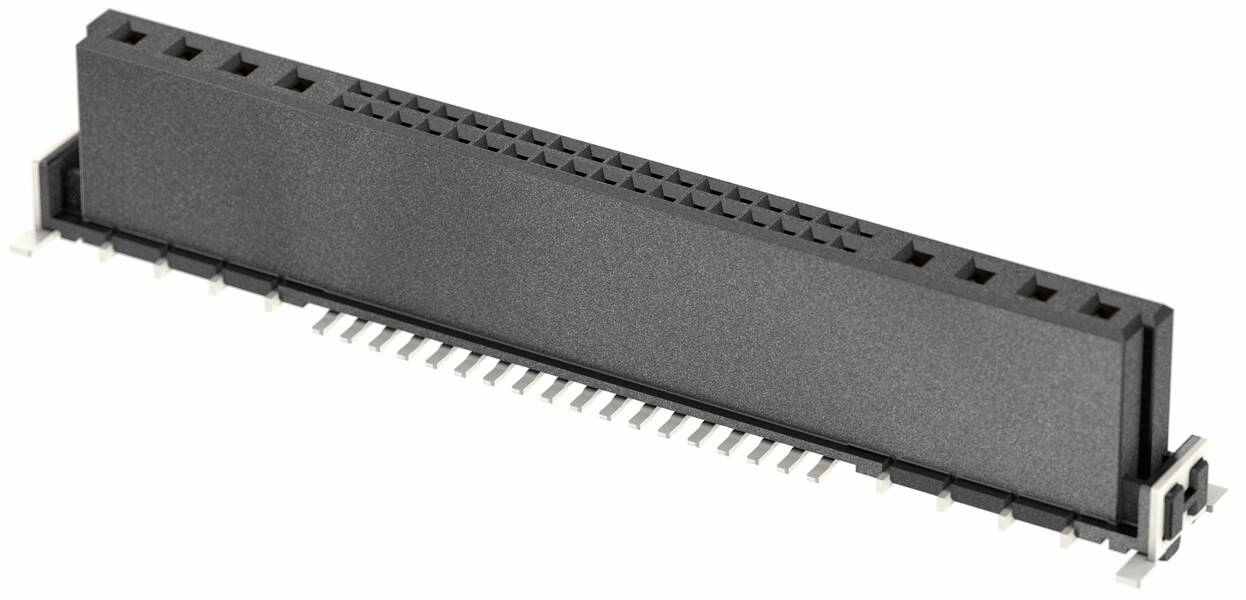

HARTING 15826262601000 Edge connector (sockets) 280 pc(s)
Product type
Edge connector (sockets)
Connector type
straight
CS
1.27 mm
2.54 mm
Content
280 pc(s)
Total number of pins
32
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Total number of pins 32
- Content 280 pc(s)
Technical specifications
- Product type
Edge connector (sockets)
- Connector type
straight
- Total number of pins
32
- CS
1.27 mm
2.54 mm
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Connection
SMT
- Factory colour
Black
- Case material
PA
- Manufacturer part #
15826262601000
- Content
280 pc(s)
- Contact material
Copper alloy
- Type
15 82 626 2601 000
Other
32
Other
-55-125 °C
Other
1.5 kV
Soldering connection
Tin
1.27 mm
1.27 mm
Liquid crystal polymer
90° (upwards vertical)
Other
20 A
