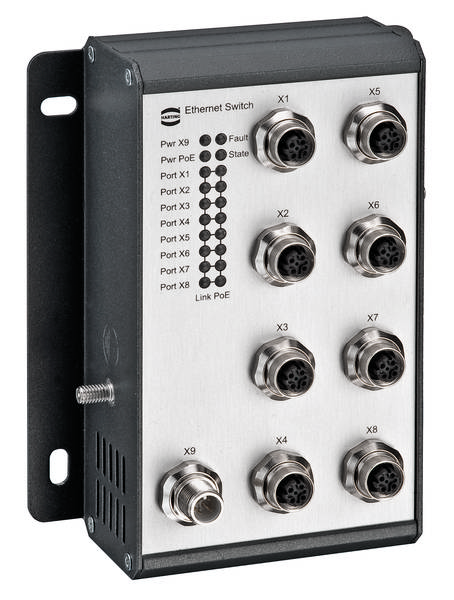

HARTING 20772083009 20 77 208 3009 Industrial Ethernet switch 100 MBit/s PoE
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Ha-VIS ECON 4000 series
- Component: Industrial Ethernet switches
- M12 A-coding type of connection
- Number of contacts: 4
- Standards: EN 55022 radio interference characteristics; EN 61000-4-2 electrostatic discharge (ESD); EN 61000-4-3 electromagnetic field; EN 61000-4-4 fast transient (burst); EN 61000-4-5 overvoltage (surge); EN 61000-4-6 conductive disturbance variables; EN 61000-6-4 emitted interference; IEC 60068-2-6 vibration (sinusoidal)
- Net weight: 850 g
- Data rate: 10 Mbit/s; 100 Mbit/s.
- Description: Unmanaged
- Storage temperature: -40 ... +85 °C
- Relative humidity: 10 ... 95 % non-condensing (operation);10 ... 95% non-condensing (storage/transport)
- Protection class according to IEC 60529:IP30 when connected
- Material housing: Aluminium (anodized);Sheet steel (powder-coated)
- Mounting: Wall mounting flat
- Operating temperature: -40 ... +70 °C
- MTBF ≈ 1544,000 h
- Permissible voltage: 44 ... 55 V DC
- Ethernet type: Fast Ethernet
- Total number of ports: 8
- Switch technology: Store and forward
- Frame size: 1.632 kB
- MAC table size: 8k entries
- Packet buffer size: 1 megabit
- Non-blocking: Yes
- Quality of Service: Yes
- Flow control: Off
- Message contact: No.
- PoE functionality: Yes
- Painted PCB: Yes
- Nominal voltage: 48 V/DC
- Voltage surge protection: Yes
- Operating current 3.000 mA @ 48 V DC
- SELV (Circuit Breaker 10 A)
- Pinout: Alternative A, MDI-X (1/2 : V-, 3/6 : V+)
- Reverse polarity protection: Yes
- Air pressure: ≥795 hPa ≈ 2000 m
- 10/100 Mbit/s (M12D ports):8
- TRANSFER STANDARD 10BASE-T;100BASE-TX
- Auto negotiation: Yes
- Auto polarity: Yes
- Auto MDI(X): Yes
- Transmission Physics: Twisted Pair Cat. 5
- Transfer length: 100 m
- Length: 50 mm
- Width 130 mm
- Height: 166 mm
- Ethernet ports PoE 8
- PoE type PSE
- Supported PoE mode: Alternative A
- IEEE 802.3af standard
- SUPPLY VOLTAGE PSE 48 V DC
- Power output total PSE: ≤ 61.6 W
- Output power PSE per port: ≤ 16.8 W
- Current per port: ≤ 350 mA
- Supported cabling: See IEEE 802.3at, Section 33.1.4
- Product type
Industrial Ethernet switch
- LAN transfer rate
100 MBit/s
- Transfer rate
100 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
8
- IEEE 802.3af PoE
8
- 10/100 Mbps ports
8 x
- 10/100/1000 Mbps ports
8 x
- Router features
PoE
- MAC addresses
8000
- Weight
850 g
- Width
130 mm
- Height
166 mm
- Depth
50 mm
- Type
20 77 208 3009
- Interfaces
LAN (10/100 Mbps)
IP30
- Operating voltage
48 V DC
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-40 °C
DIN rail (top hat rail)
TRUE
TRUE
FALSE
FALSE
IP30
Documents & Downloads
Datasheet
Datasheet 3000651 HARTING 20772083009 20 77 208 3009 Industrial Ethernet switch 100 MBit/s PoE
User & Safety Instructions
User & Safety Instructions 3000651 HARTING 20772083009 20 77 208 3009 Industrial Ethernet switch 100 MBit/s PoE
Description
Industrial Ethernet switches, unmanaged, fast Ethernet, nominal voltage 24, 48, Total number of ports: 8, Operating temperature: -40 ... +70 °C
