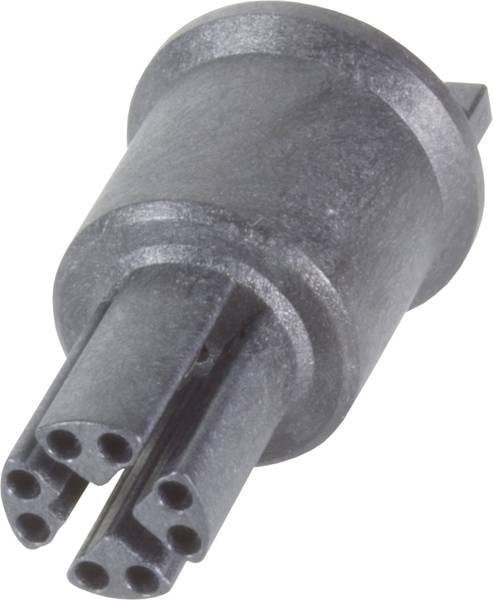

HARTING 21033812807 PCB adapter PCB connector Total number of pins: 8 1 pc(s)
Product type
PCB adapter
Connector type
PCB connector
Total no. of pins
8
Connection
THR
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Series: Circular connector M12
- Component: Circuit board adapter
- Connection type: Reflow soldering connection (THR)
- Number of contacts: 8
- Rated current 0.5 A
- Insulation resistance >108 Ω
- Continuous resistance ≤ 10 mΩ
- Temperature limit: -40 ... +85 °C
- Mating cycles ≥ 100
- Insulation material group IIIa (175 ≤ CTI < 400)
- Material application: Liquid-crystal polymer (LCP)
- Material contacts: Copper alloy
- Contact surface: Au over Ni on plug side
- Material flammability class acc. To UL 94: V-0
- IEC 61076-2-109 standard
- Net weight: 3.62 g
- Rated voltage: 50 V
- Dimensioning surge voltage: 0.8 kV
- Pollution level 3
- Note: Flange socket order separately.
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Coding: X-coding
- Data rate: 10 Mbit/s; 100 Mbit/s; 1 Gbit/s.
- Gender: Jack
- Description: Straight
- Shielding: Unshielded
- Transmission features: Cat. 5 class D to 100 MHz
- PROFINET: Yes
- Over voltage category III
- Type
21 03 381 2807
- Product type
PCB adapter
- Connector type
PCB connector
- Total no. of pins
8
- Connection
THR
- Content
1 pc(s)
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Contact material
Copper alloy
- Weight
3.62 g
- Manufacturer part #
21033812807
- Insulation material
LCP
- Number of pins
8
Other
50 V
8
Bus
-40-85 °C
Other
0.8 kV
Soldering connection
Nickel/gold
III
Liquid crystal polymer
Other
Other
0.5 A
Documents & Downloads
Datasheet
Datasheet 3008598 HARTING 21033812807 PCB adapter PCB connector Total number of pins: 8 1 pc(s)
Datasheet 3008598 HARTING 21033812807 PCB adapter PCB connector Total number of pins: 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3008598 HARTING 21033812807 PCB adapter PCB connector Total number of pins: 8 1 pc(s)
Description
PCB adapter, straight, reflow soldering connection (THR), rated current 0.5 A, contacts: 8, Copper alloy, Au over Ni plug side
