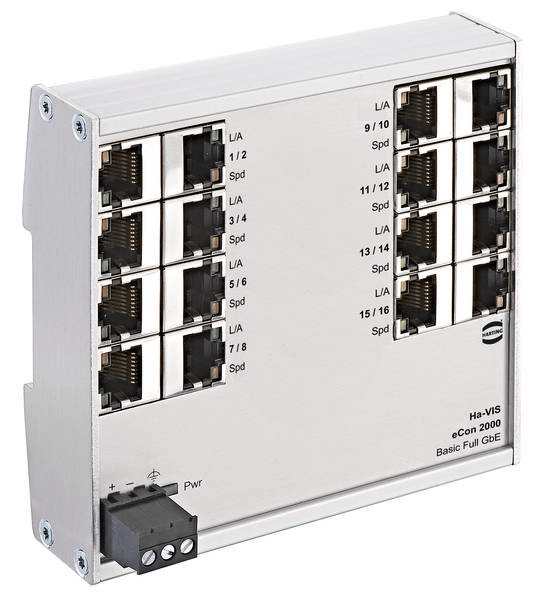

HARTING 24024160010 24 02 416 0010 Industrial Ethernet switch 1000 MBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Ha-VIS ECON 2000 series
- Component: Industrial Ethernet switches
- Connection type: Pluggable screw contact
- Number of contacts: 3
- Standards: EN 55022 radio interference characteristics; EN 61000-4-2 electrostatic discharge (ESD); EN 61000-4-3 electromagnetic field; EN 61000-4-4 fast transient (burst); EN 61000-4-5 overvoltage (surge); EN 61000-4-6 conductive disturbance variables; EN 61000-6-4 emitted interference; IEC 60068-2-6 vibration (sinusoidal)
- Net weight: 455 g
- Data rate: 10 Mbit/s; 100 Mbit/s; 1,000 Mbit/s.
- Conductor cross-section: AWG 28 ... AWG 12
- Description: Unmanaged
- Storage temperature: -40 ... +85 °C
- Relative humidity: 0 ... 95 % non-condensing (operation);0 ... 95% non-condensing (storage/transport)
- Protection class according to IEC 60529:IP30 when connected
- Material housing: Aluminium (anodized)
- Mounting:35 mm DIN rail according to EN 60715
- Operating temperature: 0 ... +55 °C
- MTBF ≈ 1360,000 h
- Permissible voltage: 9 ... 60 V DC
- Ethernet type: Full gigabit Ethernet
- Total number of ports: 16
- Switch technology: Store and forward
- Frame size: 8 kB
- MAC table size: 8k entries
- Packet buffer size: 0.5 megabit
- Non-blocking: Yes
- Quality of Service: Yes
- Flow control: Off
- Message contact: No.
- PoE functionality: No.
- Nom. voltage: 24 V DC/48 V DC
- Voltage surge protection: Yes
- Operating current <382 mA @ 24 VDC;<191 mA @ 48 VDC
- SELV (Circuit Breaker 10 A)
- POWER CONSUMPTION <9.17 W @ 24 V DC
- Pinout + / - / FE
- Reverse polarity protection: Yes
- Air pressure: ≥795 hPa ≈ 2000 m
- 10BASE-TE; 100BASE-TX EEE; 1000BASE-T EEE
- Auto negotiation: Yes
- Auto polarity: Yes
- Auto MDI(X): Yes
- Transmission Physics: Twisted Pair Cat. 5
- Transfer length: 100 m
- Length: 27.3 mm
- Width 120 mm
- Height: 113.5 mm
- FCC: Yes
- Jumbo frame support: Yes
- INRUSH CURRENT <1.6 A @ 24 V DC;<2.8 A @ 48 V DC
- Overcurrent protection: 2 A at the input
- 10/100/1000 Mbit/s (RJ45 ports): 16
- Energy Efficient Ethernet: Yes
- Product type
Industrial Ethernet switch
- LAN transfer rate
1000 MBit/s
- Transfer rate
1000 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
16
- IEEE 802.3af PoE
0
- No. of 100 Mbps/1Gbps/10Gbps ports
0 x
- 10/100 Mbps ports
16 x
- 10/100/1000 Mbps ports
16 x
- Auto-uplink at each port
Yes
- Jumbo frames
Yes
- MAC addresses
8000
- Weight
455 g
- Width
120 mm
- Height
113.5 mm
- Depth
27.3 mm
- Type
24 02 416 0010
- Interfaces
RJ45
IP30
- Operating voltage
24 V DC
48 V DC
- Max. ambient temperature
+55 °C
- Min. ambient temperature
0 °C
DIN rail (top hat rail)
120
113.5 mm
27.3 mm
TRUE
16
TRUE
FALSE
FALSE
IP30
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3000710 HARTING 24024160010 24 02 416 0010 Industrial Ethernet switch 1000 MBit/s
Datasheet 3000710 HARTING 24024160010 24 02 416 0010 Industrial Ethernet switch 1000 MBit/s
User & Safety Instructions
User & Safety Instructions 3000710 HARTING 24024160010 24 02 416 0010 Industrial Ethernet switch 1000 MBit/s
Description
Industrial Ethernet switches, unmanaged, full gigabit Ethernet, nominal voltage 24, 48, Total number of ports: 16, 10/100/1000 Mbps (RJ45 ports): 16 x
