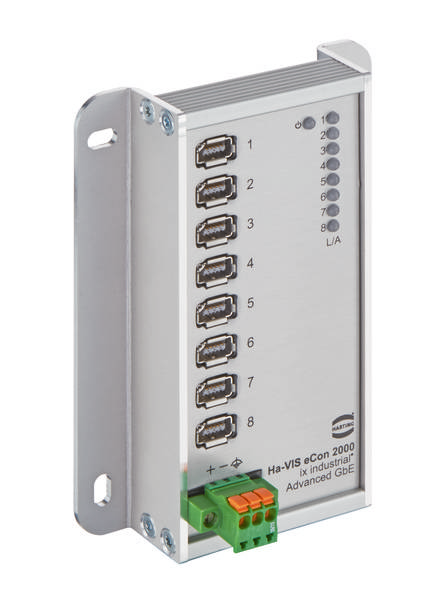

HARTING 24144080001 24 14 408 0001 Industrial Ethernet switch 1000 MBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Ha-VIS ECON 2000 series
- Component: Industrial Ethernet switches
- Connector type: Plug-in and screw-in push-in contact for the supply voltage
- Number of contacts: 3
- Standards: EN 61000-6-1 61076-3-124 EMC immunity, EN 61000-6-2 EMC immunity, EN 55024 802.3 EMC immunity, EN 61000-4-2 Electrostatic discharge (ESD);EN 61000-4-3 Electromagnetic field;EN 61000-4-4 Fast Transients (burst);EN 61000-4-6 Conducted Interference variables;EN 61000-6-4 Interference emission;EN 55032 Interference emission;FCC 47 FCR Part 60068-2-27;IEC 60721-3-3 Mechanical stability (class 3M4);IEC 60068-2-6 Swing (sinusoidal);IEC 15 Shock
- Net weight: 181 g
- Designation: Advanced
- Data rate: 10 Mbit/s; 100 Mbit/s; 1,000 Mbit/s.
- Range of application: Inside use
- Conductor cross-section: AWG 30 ... AWG 14
- Description: Unmanaged
- Storage temperature: -40 ... +85 °C
- Relative humidity: 0 ... 95 % non-condensing (operation);0 ... 95% non-condensing (storage/transport)
- Protection class according to IEC 60529:IP30 when connected
- PROFINET: Yes
- Approvals: DNV GL in preparation;E1 in preparation
- Material housing: Aluminium (anodized)
- Mounting: Wall mounting flat
- Operating temperature: -40 ... +70 °C
- Permissible voltage: 9 ... 60 V DC
- Ethernet type: Full gigabit Ethernet
- Total number of ports: 8
- Switch technology: Store and forward
- Frame size: 10 kB
- MAC table size: 8k entries
- Packet buffer size: 4 megabit
- Non-blocking: Yes
- Quality of Service: Yes
- Flow control: Off
- Message contact: No.
- PoE functionality: No.
- Nom. voltage: 24 V DC/48 V DC
- Voltage surge protection: Yes
- Operating current: 190 mA @ 24 V DC;100 mA @ 48 V DC
- SELV (Circuit Breaker 10 A)
- POWER CONSUMPTION: 4,6 W @ 24 V DC;4,8 W @ 48 V DC
- Pinout + / - / FE
- Reverse polarity protection: Yes
- Air pressure: ≥795 hPa ≈ 2000 m
- TRANSFER STANDARD 10BASE-T;100BASE-TX;1000BASE-T.
- Auto negotiation: Yes
- Auto polarity: Yes
- Auto MDI(X): Yes
- Transmission Physics: Twisted Pair Cat. 5
- Transfer length: 100 m
- Length: 24 mm
- Width 80.4 mm
- Height: 113 mm
- Jumbo frame support: Yes
- SWITCH-ON CURRENT: 2,7 A @ 24 V DC;1,2 A @ 48 V DC
- Overcurrent protection: 4 A at the input
- MAC address filter: LLDP and PROFINET PTCP Delay (01-80-C0-00-00-0E) blocked
- 10/100/1000 Mbit/s (ix Industrial® ports): 8
- Product type
Industrial Ethernet switch
- LAN transfer rate
1000 MBit/s
- Transfer rate
1000 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
8
- No. of 100 Mbps/1Gbps/10Gbps ports
8 x
- 10/100 Mbps ports
8 x
- 10/100/1000 Mbps ports
8 x
- Auto-uplink at each port
Yes
- Jumbo frames
Yes
- MAC addresses
8000
- Weight
181 g
- Width
80.4 mm
- Height
113 mm
- Depth
24 mm
- Type
24 14 408 0001
- Interfaces
RJ45
IP30
- Operating voltage
24 V DC
48 V DC
- Max. ambient temperature
70 °C
- Min. ambient temperature
-40 °C
Other
80.4
113 mm
24 mm
TRUE
TRUE
FALSE
FALSE
IP30
8
Documents & Downloads
Datasheet
Datasheet 3000756 HARTING 24144080001 24 14 408 0001 Industrial Ethernet switch 1000 MBit/s
Datasheet 3000756 HARTING 24144080001 24 14 408 0001 Industrial Ethernet switch 1000 MBit/s
User & Safety Instructions
User & Safety Instructions 3000756 HARTING 24144080001 24 14 408 0001 Industrial Ethernet switch 1000 MBit/s
Description
Industrial Ethernet switches, unmanaged, full gigabit Ethernet, nominal voltage 24, 48, Total number of ports: 8
