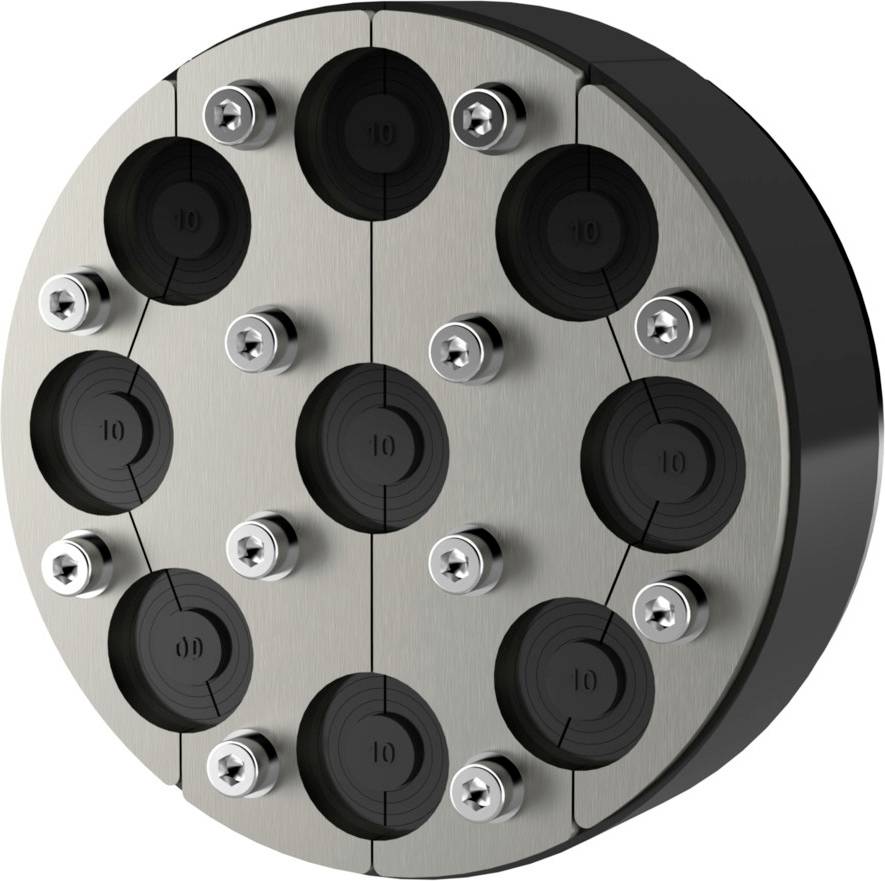

Hauff HRD150-SG-9/6-25 Ring compartment sealing 1 pc(s)
Product type
Ring compartment sealing
Content
1 pc(s)
Manufacturer part #
2700106000
Type
HRD150-SG-9/6-25
Mounting type
Tube
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Design: Crimp-ring seal
- Cable diameter 6..25 mm
- Density (depth): 40 mm
- Number of cables: 9
- Core drilling/pipe mounting type
- Gas tight: Yes
- Waterproof: Yes
- Radon-tight: Yes
- Shock-proof against explosions: Yes
- Building seal according to DIN 18533: Yes
- Building seal according to DafStb directive: Yes
- Product type
Ring compartment sealing
- Content
1 pc(s)
- Manufacturer part #
2700106000
- Type
HRD150-SG-9/6-25
- Mounting type
Tube
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3795846 Hauff HRD150-SG-9/6-25 Ring compartment sealing 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3795846 Hauff HRD150-SG-9/6-25 Ring compartment sealing 1 pc(s)
Description
Ring compartment sealing for sealing cables in core drilling or feed pipes. Divided version for sealing of newly installed or already laid cables Segment ring technology for individual adaptation to the cable diameter on site. Unused openings are blind closed ex works. Split seal for subsequent assembly. Available from stock | Feed tube/core bore Øi (mm): 150 | Total cable/Medium: 9 | Passages: 9 | Media tube Øa (mm): 6-25 | .
