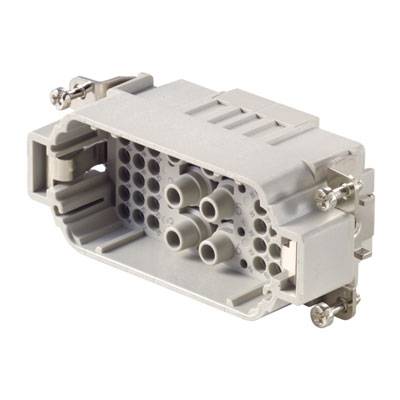

HDC insert, Male, 690 V, 40 A, No. of poles: 42, Crimp connection, Size: 6
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Crimp
Series
RockStar® HDC
Features
copper-plated
Total no. of pins
6 + 36 + PE
Datasheet (PDF)
Highlights & Details
HDC insert, Male, 690 V, 40 A, No. of poles: 42, Crimp connection, Size: 6
- HDC S 6/36 MC
Technical specifications
- Net weight: 60 g
- Temperature limit: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 34 mm
- Height: 38.1 mm
- Depth: 84.5 mm
- Length Socket: 84.5 mm
- Size: 6
- Series: MixMate
- Rated voltage (DIN EN 61984): 690 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 8 kV
- Rated current (DIN EN 61984): 40 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 2MΩ
- Insulation material: PC glass fiber reinforced (UL listed and railway qualified)
- Insulation material group: IIIA
- Plug cycles AG: ≥ 500
- Plug cycles Au: ≥ 500
- Connection type PE: Screw connection
- conductor cross-section AWG (PE), max.: AWG 10
- Wire cross-section AWG (PE), min.: AWG 20
- Wire stripping length Rated connection: 9 mm
- PE connection: 13 mm
- Tightening torque max. PE connection: 2.5 Nm
- Tightening torque min. PE connection: 2 Nm
- Mounting screw: M 5
- Cross-head blade dimension: GR. PH2
- Slotted blade dimension (PE connection): SD 1.2 x 6.5
- Height Plug: 38.1 mm
- Number of power contacts: 6
- Product type
Pin inset
- Series
RockStar® HDC
- Features
copper-plated
- Connection
Crimp
- Total no. of pins
6 + 36 + PE
- Core cross section (max.)
6 mm²
- Number of pins
6
36
- Core cross section (min.)
1.5 mm²
- Core cross section power contact (max.)
6 mm²
- Core cross section power contact (min.)
1.5 mm²
- Core cross section controller contact (max.)
2.5 mm²
- Core cross section controller contact (min.)
0.5 mm²
- Content
1 pc(s)
- Leading contact (PE)
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 195798 HDC insert, Male, 690 V, 40 A, No. of poles: 42, Crimp connection, Size: 6
User & Safety Instructions
User & Safety Instructions 195798 HDC insert, Male, 690 V, 40 A, No. of poles: 42, Crimp connection, Size: 6
Description
The MixMate series of connectors can simultaneously transmit high rated currents and voltages as well as signals.
The wire connection level is designed as a crimp contact. The established crimp connection has been used as a standard for decades.
Crimp contacts are not delivered with the inserts.
Crimp connection
The wire connection level is designed as a crimp contact. The established crimp connection has been used as a standard for decades.
Crimp contacts are not delivered with the inserts.
Crimp connection
