Hebotec HSKB 35-65 Screen holder with screw Mounting hole diameter 4 mm Terminal Ø (max.) 65 mm Spring steel, Copper 5 p
Product type
Screen holder
Features
with screw
Material
Spring steel
Copper
Clamp Ø
35 mm
Terminal Ø (max.)
65 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Hebotec screen clamp HSKB 35-65 - 5 pcs
- Large clamping range
- Constant good contact to the cable shield due to spring effect
- High conductivity
- Flexible ground connection
Technical specifications
- Screen clamp Big for direct mounting, screen diameter 35-65 mm
- Material: Galvanized spring steel, nickel-plated spring steel, tin-plated copper
- Product type
Screen holder
- Features
with screw
- Material
Spring steel
Copper
- (Ø)
65 mm
- Dim
(Ø) 65 mm
- Clamp Ø
35 mm
- Terminal Ø (max.)
65 mm
- Mounting hole
M4
- Content
5 pc(s)
- Manufacturer part #
1012-002B
- Type
HSKB 35-65
- Material properties
zinc plated
tin plated
nickel plated
- Mounting hole diameter
4 mm
Documents & Downloads
Datasheet
Datasheet 2256951 Hebotec HSKB 35-65 Screen holder with screw Mounting hole diameter 4 mm Terminal Ø (max.) 65 mm Spring steel, Copper 5 p
User & Safety Instructions
User & Safety Instructions 2256951 Hebotec HSKB 35-65 Screen holder with screw Mounting hole diameter 4 mm Terminal Ø (max.) 65 mm Spring steel, Copper 5 p
Description
The big screen clamp for large diameters has a large clamping range and enables very good contact of cable shields with large diameters.

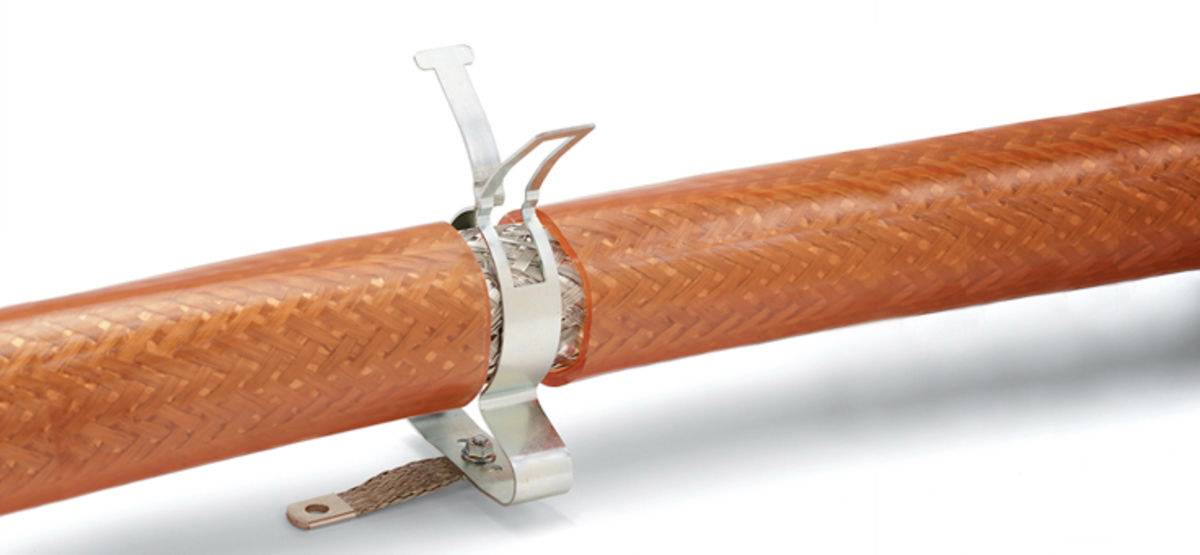

The stripped cable is pressed into the shield clamp. The cable shield is constantly well contacted by the spring force of the clamp.

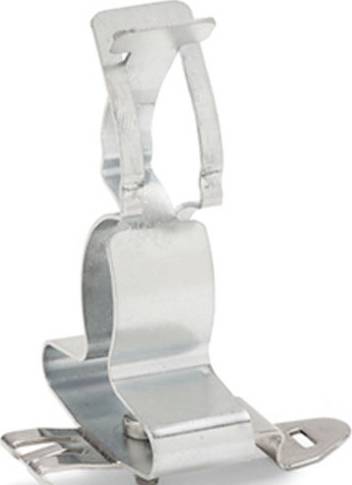

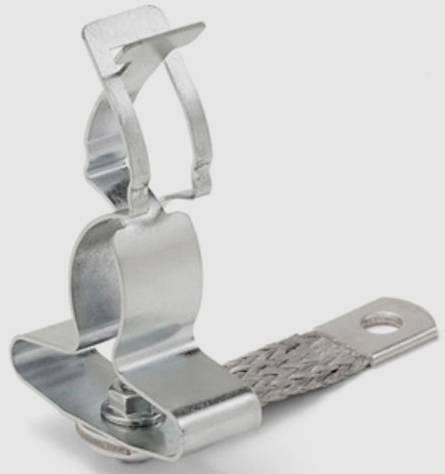

The shield clamp is available for direct mounting with M4 screw, with snap-on base for mounting on 35 mm DIN rail and with a flexible flat ribbon connection with a length of 50 mm.

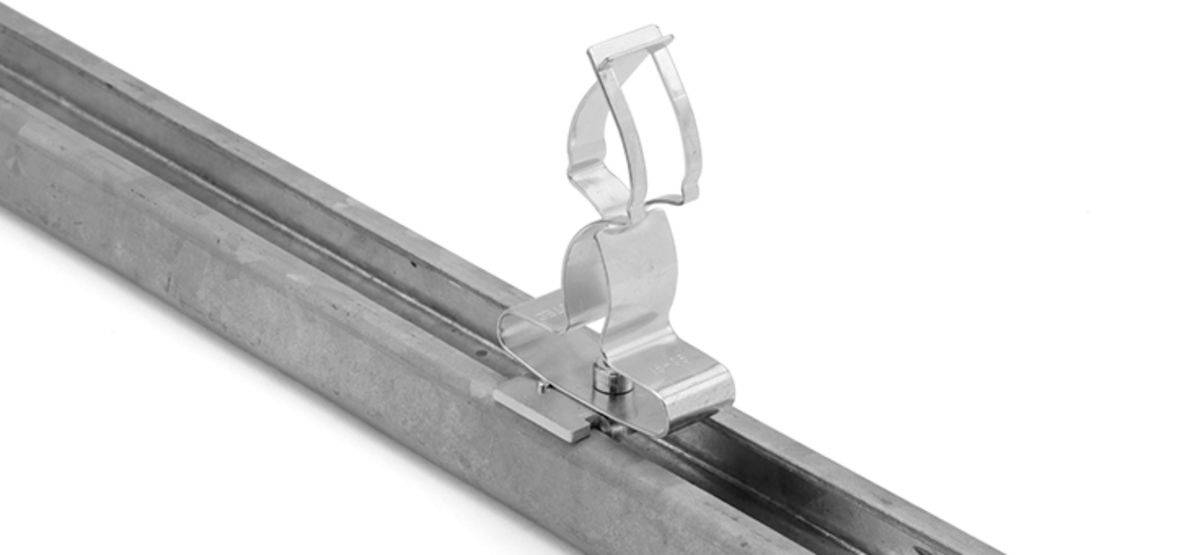

The mounting adapter accessory enables mounting on C-rails.
This text is machine translated.
The stripped cable is pressed into the shield clamp. The cable shield is constantly well contacted by the spring force of the clamp.
The shield clamp is available for direct mounting with M4 screw, with snap-on base for mounting on 35 mm DIN rail and with a flexible flat ribbon connection with a length of 50 mm.
The mounting adapter accessory enables mounting on C-rails.
