Hebotec SKDZ 4 3-6 C16 Screen holder with strain relief Terminal Ø (max.) 6 mm Spring steel 10 pc(s)
Product type
Screen holder
Features
with strain relief
Material
Spring steel
Clamp Ø
3 mm
Terminal Ø (max.)
6 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Hebotec screen clamp SKDZ 4 3-6 C16 - 10 pcs
- Small variety of types by shield clamp Multi
- Strain relief with cable tie on the cable jacket
- Very compact design
Technical specifications
- Shield bracket for C16 rail with mounting adapter and strain relief, M4, shield diameter 3-6 mm
- Material: Galvanized spring steel
- Product type
Screen holder
- Features
with strain relief
- Material
Spring steel
- Clamp Ø
3 mm
- Terminal Ø (max.)
6 mm
- Mounting hole
M4
- Content
10 pc(s)
- Manufacturer part #
1037-002C
- Type
SKDZ 4 3-6 C16
- Material properties
zinc plated
Documents & Downloads
Datasheet
Datasheet 2256823 Hebotec SKDZ 4 3-6 C16 Screen holder with strain relief Terminal Ø (max.) 6 mm Spring steel 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2256823 Hebotec SKDZ 4 3-6 C16 Screen holder with strain relief Terminal Ø (max.) 6 mm Spring steel 10 pc(s)
Description

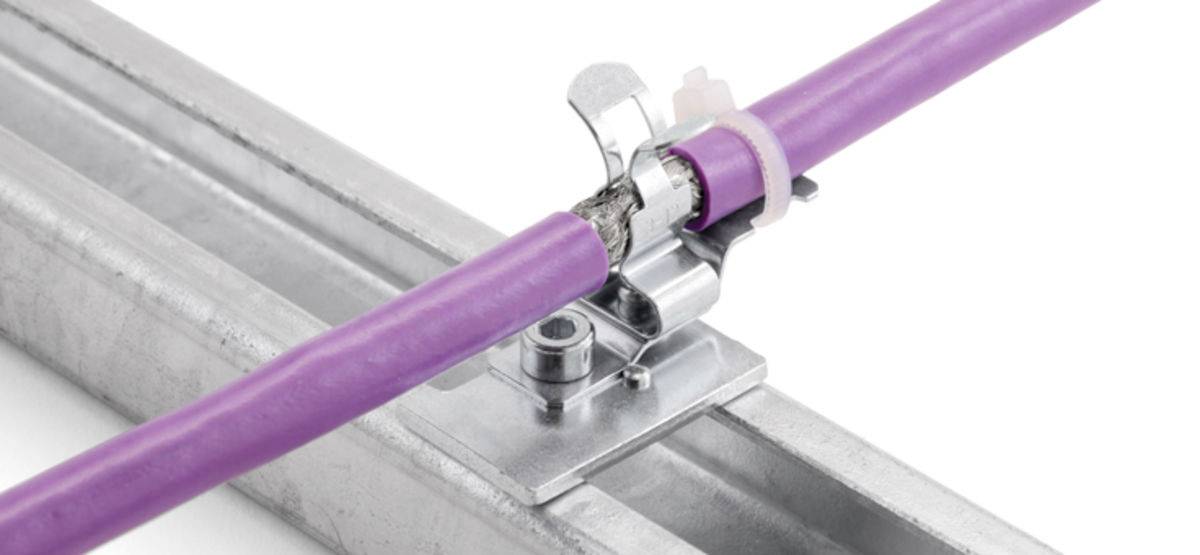

The shield clamp for C-rail can be inserted into the C-mounting rail with a 16 mm groove by turning it 90°.
The mounting adapter is stuck in the C-rail with the help of the M4 fixing screw.
For secure contact, the cable shield only needs to be pressed into the shield clamp.
The strain relief clamp offers the possibility of a strain relief on the cable jacket with cable ties.
This text is machine translated.
The mounting adapter is stuck in the C-rail with the help of the M4 fixing screw.
For secure contact, the cable shield only needs to be pressed into the shield clamp.
The strain relief clamp offers the possibility of a strain relief on the cable jacket with cable ties.
