Hebotec SKDZ 4 6-8 Screen holder with strain relief Terminal Ø (max.) 8 mm Spring steel 10 pc(s)
Product type
Screen holder
Features
with strain relief
Material
Spring steel
Clamp Ø
6 mm
Terminal Ø (max.)
8 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Hebotec screen clamp SKDZ 4 6-8 - 10 pcs
- Direct mounting with M4 or M5 screw
- Mounting on C-rail with mounting adapter as accessories
- Very compact design
- Small variety of types by shield clamp Multi
- Strain relief with cable tie on the cable jacket
Technical specifications
- Shield clamp for direct mounting with strain relief, M4, screen diameter: 6-8 mm
- Material: Galvanized spring steel
- Product type
Screen holder
- Features
with strain relief
- Material
Spring steel
- (Ø)
8 mm
- Dim
(Ø) 8 mm
- Clamp Ø
6 mm
- Terminal Ø (max.)
8 mm
- Mounting hole
M4
- Content
10 pc(s)
- Manufacturer part #
1022-203C
- Type
SKDZ 4 6-8
- Material properties
zinc plated
Documents & Downloads
Datasheet
Datasheet 2256899 Hebotec SKDZ 4 6-8 Screen holder with strain relief Terminal Ø (max.) 8 mm Spring steel 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2256899 Hebotec SKDZ 4 6-8 Screen holder with strain relief Terminal Ø (max.) 8 mm Spring steel 10 pc(s)
Description

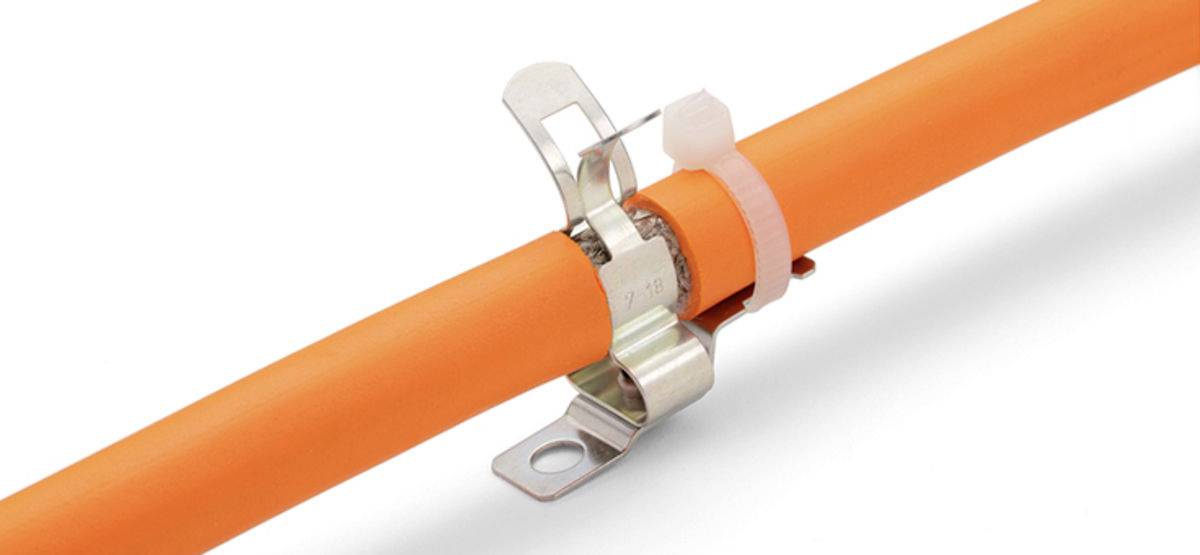

The screen clamp for direct mounting can be screwed directly, e.g. on the mounting plate.
For secure contact, the cable shield only needs to be pressed into the shield clamp.
The strain relief clamp offers the possibility of a strain relief on the cable jacket with cable ties.
This text is machine translated.
For secure contact, the cable shield only needs to be pressed into the shield clamp.
The strain relief clamp offers the possibility of a strain relief on the cable jacket with cable ties.
This text is machine translated.
