Heiman HS2WL-M HS2WL-M Water leak detector battery-powered
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 28.90 / piece)
€ 28.90
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Heiman HS2WL-M Matter water detector with early leakage and frost detection, 75 dB alarm, blue LED and protection class IP67
- Independent protection without hub: Leakage detection, local buzzer and blue LED
- Matter/thread hub for APP notifications only, remote access, status, alarm history, and automation
- Matter-compatible with Alexa, Google home, Apple home, SmartThings and home assistant
- Early leakage and frost detection to limit water damage
- Acoustic and visual warning with at least 75 dB and blue LED-display
- Replaceable CR123A lithium battery with up to 5 years battery life
- Dust and waterproof casing according to IP67
- Tool-free, flexible placing under rinsing, next to household appliances, pipes and floor edges
Technical specifications
- Local alarm: Blue LED and buzzer with ≥ 75 dB at a distance of 1 m.
- Matte over thread
- Compatible platforms: Alexa, Google home, Apple home, SmartThings, home Assistant
- Operation without/with hub: Without hub: Leakage detection, local buzzer and blue LED; hub only for APP, remote access, status, alarm history and automation
- Radio range: Up to 80 m outdoors
- Thread / frequency IEEE 802.15.4 / 2.4 to 2.48 GHz
- Bluetooth:BLE 5.0, for start-up
- IP67 rating
- Operating temperature: 0 °C to +50 °C
- Operating humidity: ≤ 95 % relative humidity, non-condensing
- Product type
Water leak detector
- Operating voltage
3 V DC
- Operating voltage
3 V DC
- Power supply (LOV)
battery-powered
- Width
69 mm
- Height
69 mm
- Depth
27.6 mm
- Dim
(W x H x D) 69 x 69 x 27.6 mm
Documents & Downloads
Datasheet
Datasheet 3858333 Heiman HS2WL-M HS2WL-M Water leak detector battery-powered
User & Safety Instructions
User & Safety Instructions 3858333 Heiman HS2WL-M HS2WL-M Water leak detector battery-powered
Description
The Heiman HS2WL-M is a compact Matter-water detector for the early detection of water leaks and frost conditions. As soon as water is detected, the water leakage sensor warns locally with an alarm sound of at least 75 dB at a distance of 1 m and a blue LED display. This allows you to reliably monitor hazardous areas in the kitchen, bathroom, cellar, laundry room or technical room.
Matter over thread enables cross-platform Smart home integration in Alexa, Google home, Apple home, SmartThings and home assistant. In conjunction with a compatible mat/thread hub, the water detector sends real-time notifications to the APP. There you can also control sensor status, alarm history and device status.

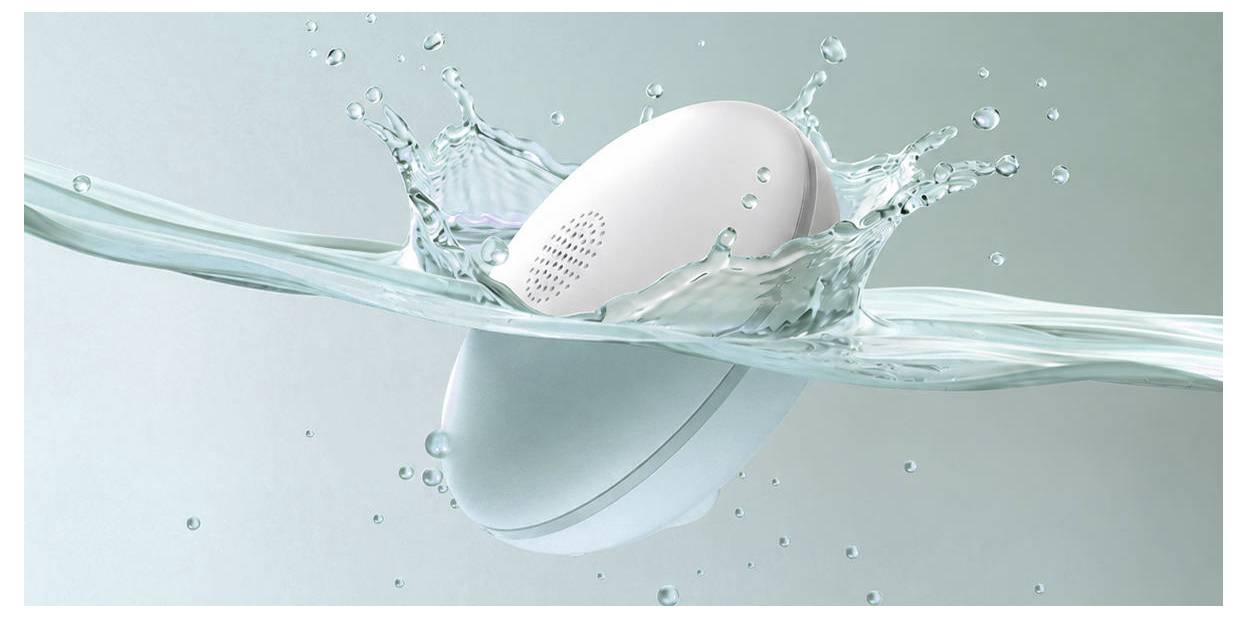

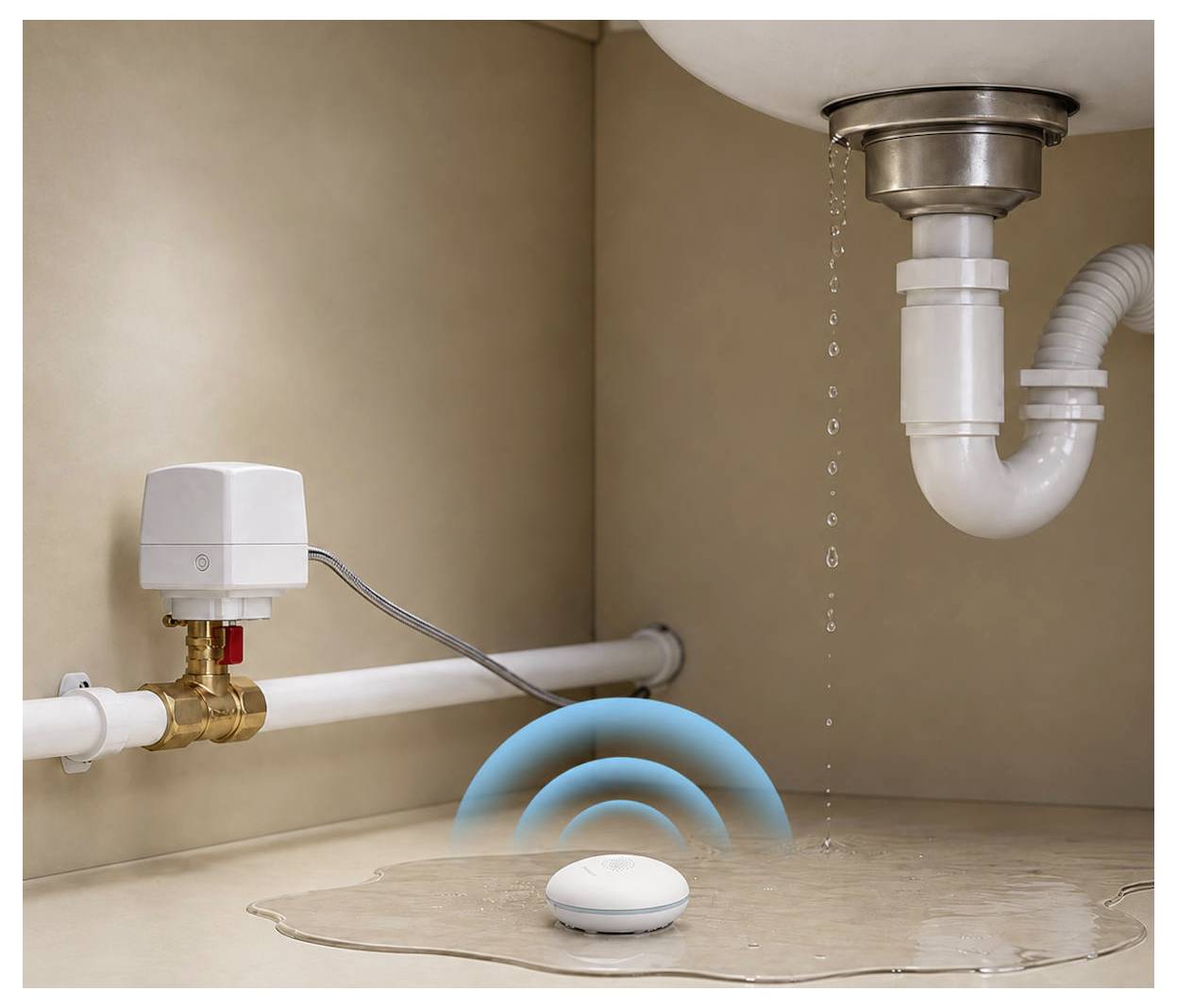

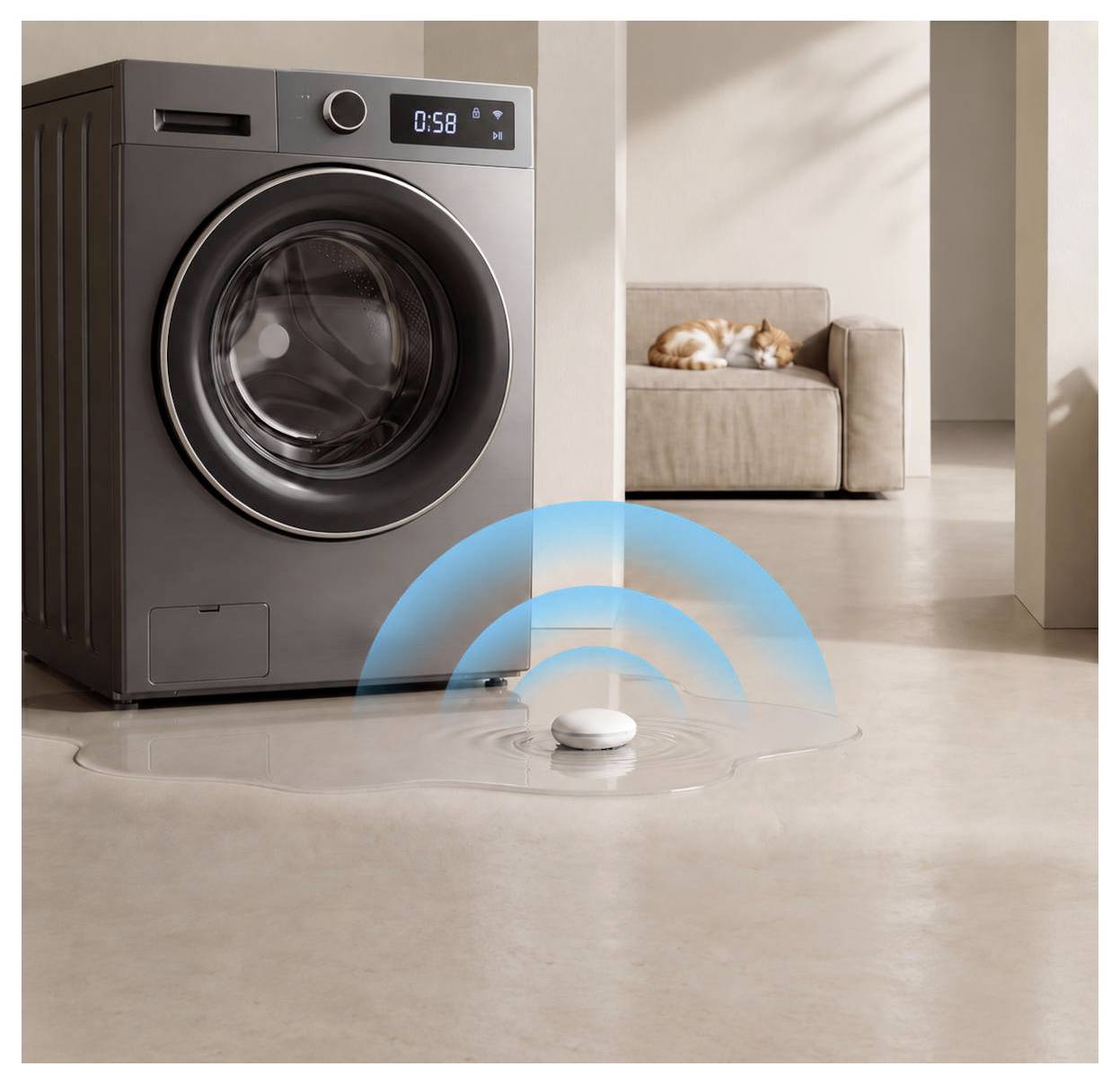

The dust and water protected housing in accordance with IP67 is suitable for typical leak areas under sinks, next to washing machines, water heaters and pipes as well as along floor edges. The compact water leakage sensor is installed without tools or wiring and can be easily repositioned if needed. The replaceable CR123A lithium battery provides a battery life of up to 5 years. For networked protection concepts, automation with compatible water valves, sirens, lights or cameras can also be set up.
This text is machine translated.
Matter over thread enables cross-platform Smart home integration in Alexa, Google home, Apple home, SmartThings and home assistant. In conjunction with a compatible mat/thread hub, the water detector sends real-time notifications to the APP. There you can also control sensor status, alarm history and device status.
The dust and water protected housing in accordance with IP67 is suitable for typical leak areas under sinks, next to washing machines, water heaters and pipes as well as along floor edges. The compact water leakage sensor is installed without tools or wiring and can be easily repositioned if needed. The replaceable CR123A lithium battery provides a battery life of up to 5 years. For networked protection concepts, automation with compatible water valves, sirens, lights or cameras can also be set up.
This text is machine translated.
Scope of delivery
- 1x smoke detector
- 1x holder with integrated magnets
- 1x CR123A lithium battery, battery already inserted
- 3x screws
- 3x dowel
- 1x user manual
- 1x metal mounting plate with 3M adhesive foil for the magnetic holder
Hints

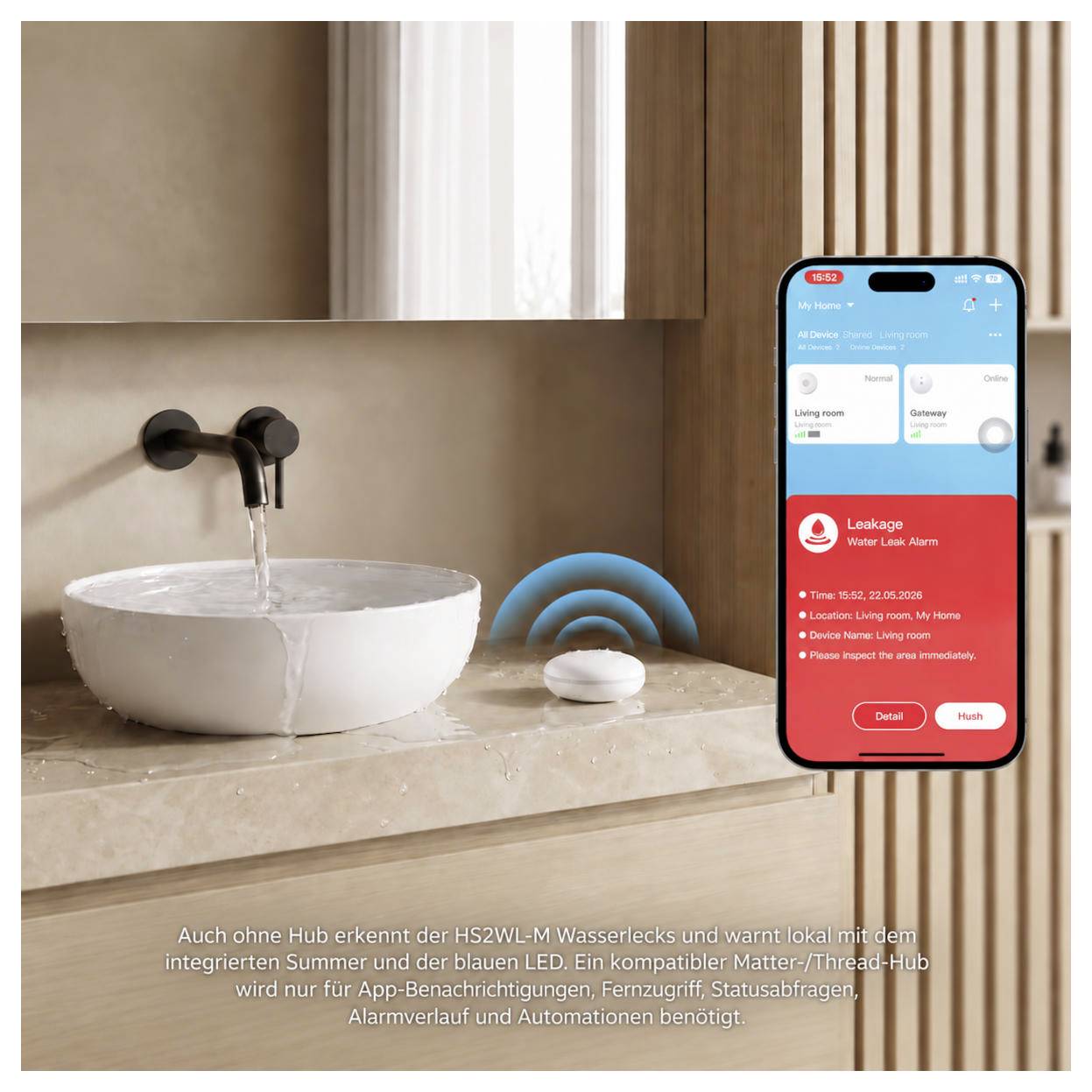

Even without a hub, the HS2WL-M detects water leakage and warns locally with the integrated buzzer and the blue LED. A compatible Matter/Thread Hub is required only for APP notifications, remote access, status queries, alarm history, and automation.
