HellermannTyton DINBLOK3 Additional fastener DIN block 1 pc(s)
EAN:
Part number:
Item no:
Product type
Additional fastener
Material
Polyacetal (POM)
Features
DIN block
Factory colour
Black
Length
50 mm
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€
Technical specifications
- Matching for suppot rail DELTA3 to 3AF
- Colour, black
- Material: Polyacetal (POM)
- Operating temperature: -40 to + 80 °C.
- Flame retardant in accordance with UL94 V2
- Approvals: IMQ, R.I.N.A.
- Product type
Additional fastener
- Features
DIN block
- Material
Polyacetal (POM)
- Factory colour
Black
- Length
50 mm
- Width
50 mm
- Height
14 mm
- Dim
(L x W x H) 50 x 50 x 14 mm
- Content
1 pc(s)
- Type
DINBLOK3
- RoHS-compliant
Yes
- Material (details)
POM
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 545571 HellermannTyton DINBLOK3 Additional fastener DIN block 1 pc(s)
Description

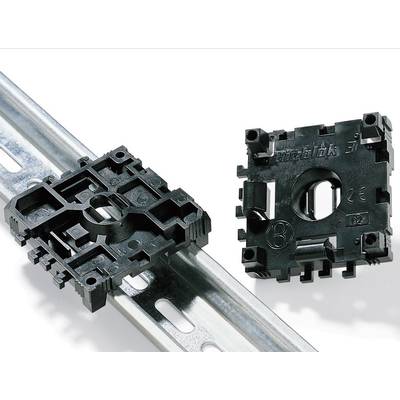

The DINBLOK3 fixing block can be used to secure cable trunking or other components to a mounting rail. The mounting blocks are clicked on the mounting rail and, for example a wiring channel can be attached to it using ZP1 screw cap. Along with time savings, another advantage is that the cable trunking can be fitted both lengthwise or crosswise to the mounting rail.
