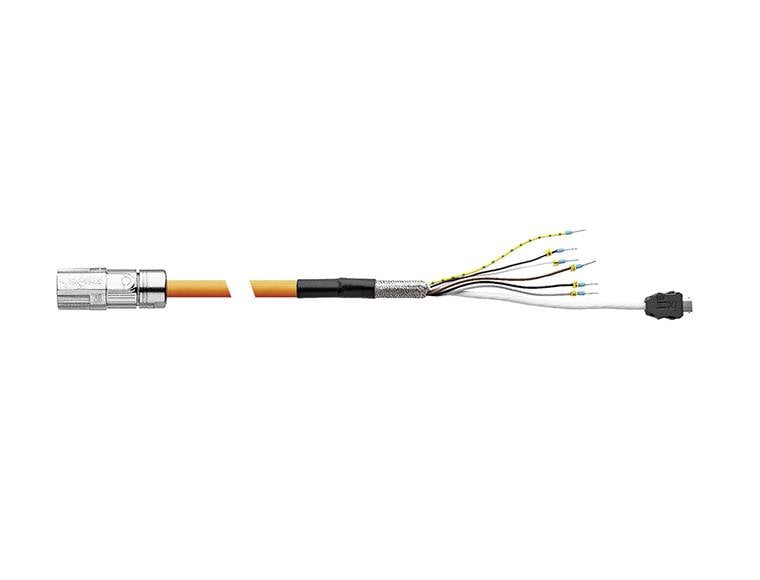

HELU 17005373 Sensor/actuator cable (pre-fab) straight, straight 5.00 m 1 pc(s)
Product type
Sensor/actuator cable (pre-fab)
Connector type
straight
straight
Connection side A
SpeedTec M23 plug, 10-pin
Connection side B
IX plug, 10-pin + ferrules (115mm+135mm)
Cable length
5.00 m
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
Hybrid cable TOPSSERV® HYBRID 8QN11, ready-made
Our service for you
Technical specifications
- Min Fixed temperature -40°C.
- Max. Fixed temperature: +80 °C
- Min Temperature, moving: -30 °C.
- Max. Temperature, moving: +80°C
- Minimum radius of bend, laid fixed: 5x
- Minimum bend radius, moving: 8x
- Type
TOPSERV® Hybrid CONNECTING SYSTEMS PUR 8QN11 5.00 m
- Product type
Sensor/actuator cable (pre-fab)
- Connector type
straight
straight
- Connection side A
SpeedTec M23 plug, 10-pin
- Connection side B
IX plug, 10-pin + ferrules (115mm+135mm)
- Cable length
5.00 m
- Jacket material
PUR
- Outside Ø
12.30 mm
- Factory colour
Orange
- Manufacturer part #
17005373
- Content
1 pc(s)
- RoHS-compliant
Yes
- Cable features
Suitable for drag chains
UV-resistant
Halogen-free
Documents & Downloads
Datasheet
Datasheet 3777991 HELU 17005373 Sensor/actuator cable (pre-fab) straight, straight 5.00 m 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3777991 HELU 17005373 Sensor/actuator cable (pre-fab) straight, straight 5.00 m 1 pc(s)
Description
Hints
OEM NO. 6FX8002-8QN11-1AF0
