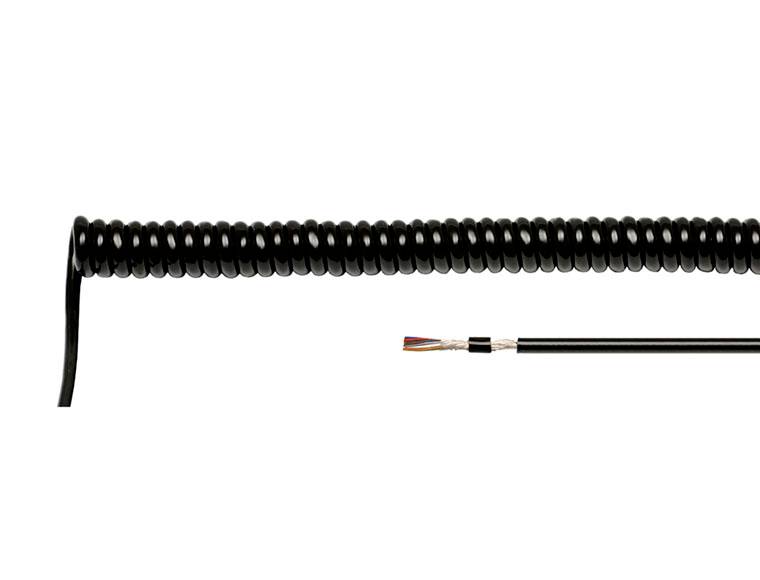

HELU 600155 Spiral cable LiF12YD11Y 400 mm / 1600 mm 3 x 0.14 mm² Black 1 pc(s)
Part number:
Item no:
Product type
Spiral cable
Cable type
LiF12YD11Y
Spiral length (min.)
400 mm
Spiral lenght (max.)
1600 mm
No. of leads
3 x
Datasheet (PDF)
Highlights & Details
Spiral cable PUR 400mm shielded 3x0.14 mm² black
- LIF12YD11Y
- Outer cover: PUR
- 400 mm - 1600 mm x 15.20 mm
- Extra-finely stranded according to VDE 0295, class 6
Technical specifications
- Cu-No. 55.8 kg/1000 pcs.
- Product type
Spiral cable
- Cable type
LiF12YD11Y
- Spiral length (min.)
400 mm
- Spiral lenght (max.)
1600 mm
- No. of leads
3 x
- Cross section (each core)
0.14 mm²
- Cross section
3 x 0.14 mm²
- Cable features
Shielded
- Outside Ø
15.2 mm
- Factory colour
Black
- Content
1 pc(s)
- Shielded
Yes
- Manufacturer part #
600155
- Insulation material
PUR
- Min. temperature range (flexible installation)
-25 °C
- Max. temperature range (flexible installation)
70 °C
- Core layout
Cu-strand blank, fine-wired according to DIN VDE 0295 Class 6, BS 6360 Cl. 6, IEC 60228 CL. 6
- Min. temperature range (fixed installation)
-25 °C
- Max. temperature range (fixed installation)
70 °C
- Certification marks
DIN VDE 0295 class 6, BS 6360 class. 6, IEC 60228 CL. 6
- Nominal voltage
300 V
- Wire ID code
Complies with DIN 47100
- Nominal voltage U0
300 V
- Type
Spiralkabel PUR 400mm geschirmt 3x0,14 mm² schwarz
Documents & Downloads
Datasheet
Datasheet 3768011 HELU 600155 Spiral cable LiF12YD11Y 400 mm / 1600 mm 3 x 0.14 mm² Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3768011 HELU 600155 Spiral cable LiF12YD11Y 400 mm / 1600 mm 3 x 0.14 mm² Black 1 pc(s)
Description
High-quality, shielded PUR-Electronic-spiral cable for interference-free signal transmission in low-current technology, Ideal for medical devices and measuring instruments.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x shielded spiral cable with 400 mm spiral length and both sides 200 mm stretched ends.
