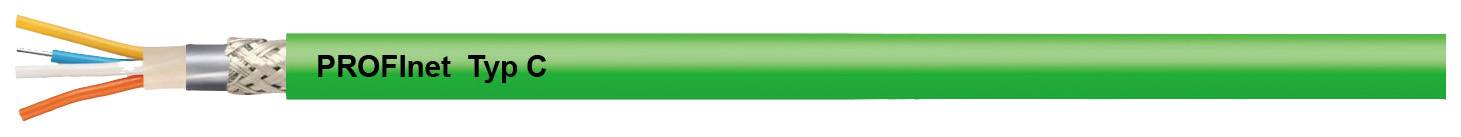

HELU 800655 Bus cable 2 x 2 x 0.36 mm² Green 100 m
EAN:
Part number:
Item no:
Product type
Bus cable
No. of leads
4 x
Cross section (each core)
0.36 mm²
Cross section
2 x 2 x 0.36 mm²
Cable features
highly flexible
Halogen-free
Shielded
Technical specifications
- Product type
Bus cable
- No. of leads
4 x
- Cross section (each core)
0.36 mm²
- Cross section
2 x 2 x 0.36 mm²
- Cable features
highly flexible
Halogen-free
Shielded
- Outside Ø
6.5 mm
- Factory colour
Green
- Content
100 m
- Test voltage
1500 V
- Bend radius (no. of ODs for fixed installation)
7
- Bend radius (no. of ODs for flexible installation)
8
- Packaged
Yes
- Sold per metre
No
- Halogen-free
Yes
- Manufacturer part #
800655
- Insulation material
PE
- Min. temperature range (fixed installation)
-30 °C
- Max. temperature range (fixed installation)
75 °C
- Core layout
Copper, tin plated (AWG 22/7)
- Operating capacity
52 nF/km
- Certification marks
PROFINET type C.
- Wave impedance
100 Ω
- Type
HELUKAT PROFInet C
- Twisted pair cabling (part 1)
Yes (1)
