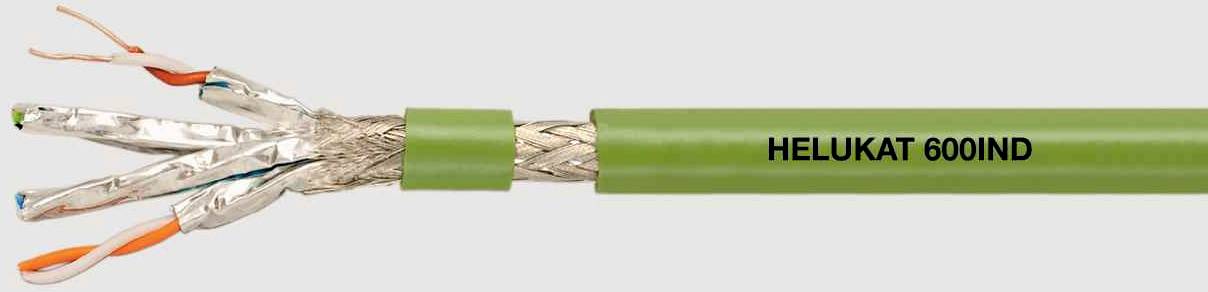

HELU 801197 Bus cable 4 x 2 x 0.25 mm² Green 100 m
EAN:
Part number:
Item no:
Product type
Bus cable
No. of leads
8 x
Cross section (each core)
0.25 mm²
Cross section
4 x 2 x 0.25 mm²
Cable features
Flame-retardant
Oil-resistant
Shielded
Technical specifications
- Product type
Bus cable
- No. of leads
8 x
- Cross section (each core)
0.25 mm²
- Cross section
4 x 2 x 0.25 mm²
- Cable features
Flame-retardant
Oil-resistant
Shielded
- Outside Ø
7.5 mm
- Factory colour
Green
- Content
100 m
- Test voltage
0
- Bend radius (no. of ODs for fixed installation)
8
- Bend radius (no. of ODs for flexible installation)
10.5
- Packaged
Yes
- Sold per metre
No
- Halogen-free
Yes
- Manufacturer part #
801197
- Insulation material
Foam Skin PE
- Min. temperature range (fixed installation)
-5 °C
- Max. temperature range (fixed installation)
80 °C
- Core layout
Copper, bare (AWG 23/1)
- Operating capacity
43 nF/km
- Certification marks
Industrial Ethernet
- Wave impedance
100 Ω
- Type
HELUKAT 600IND S/FTP
- Twisted pair cabling (part 1)
Yes (1)
