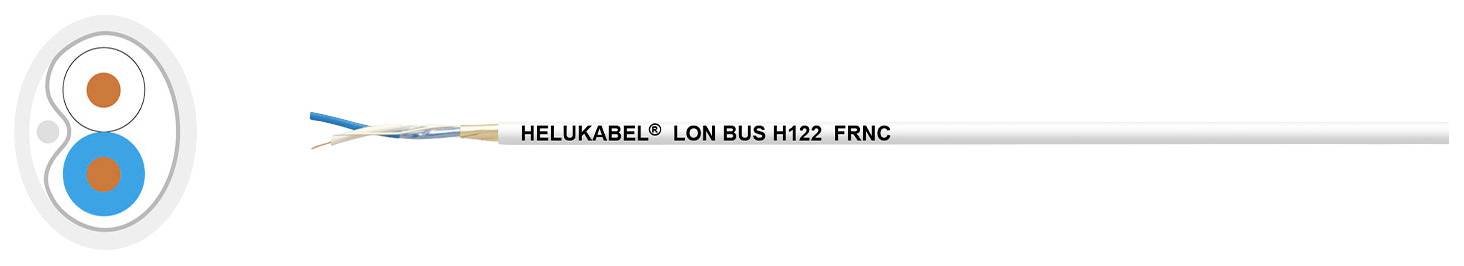

HELU 802188 Bus cable 1 x 2 x 0.08 mm² Grey 100 m
EAN:
Part number:
Item no:
Product type
Bus cable
No. of leads
2 x
Cross section (each core)
0.08 mm²
Cross section
1 x 2 x 0.08 mm²
Cable features
Flame-retardant
Suitable for drag chains
PUR coating
Technical specifications
- Product type
Bus cable
- No. of leads
2 x
- Cross section (each core)
0.08 mm²
- Cross section
1 x 2 x 0.08 mm²
- Cable features
Flame-retardant
Suitable for drag chains
PUR coating
- Outside Ø
7 mm
- Factory colour
Grey
- Content
100 m
- Test voltage
2000 V
- Bend radius (no. of ODs for fixed installation)
9.5
- Bend radius (no. of ODs for flexible installation)
12
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Manufacturer part #
802188
- Insulation material
PVC
- Min. temperature range (fixed installation)
-20 °C
- Max. temperature range (fixed installation)
70 °C
- Core layout
Copper, tin plated (AWG 16/19)
- Operating capacity
10 nF/km
- Certification marks
LON BUS Y116
- Wave impedance
100 Ω
- Type
LON-BUS
- Twisted pair cabling (part 1)
Yes (1)
