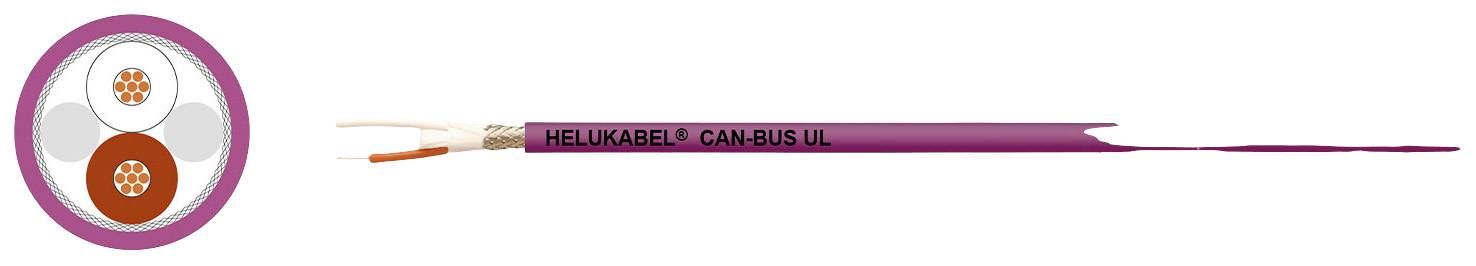

HELU 802339 Bus cable 2 x 2 x 0.34 mm² Violet 100 m
EAN:
Part number:
Item no:
Product type
Bus cable
No. of leads
4 x
Cross section (each core)
0.34 mm²
Cross section
2 x 2 x 0.34 mm²
Cable features
Flame-retardant
Halogen-free
Shielded
Technical specifications
- Product type
Bus cable
- No. of leads
4 x
- Cross section (each core)
0.34 mm²
- Cross section
2 x 2 x 0.34 mm²
- Cable features
Flame-retardant
Halogen-free
Shielded
- Outside Ø
7.5 mm
- Factory colour
Violet
- Content
100 m
- Test voltage
1500 V
- Bend radius (no. of ODs for fixed installation)
10
- Bend radius (no. of ODs for flexible installation)
17.5
- Packaged
Yes
- Sold per metre
No
- Halogen-free
Yes
- Manufacturer part #
802339
- Insulation material
Foam Skin PE
- Min. temperature range (fixed installation)
-30 °C
- Max. temperature range (fixed installation)
70 °C
- Core layout
Copper, bare (AWG 22/43)
- Operating capacity
40 nF/km
- Certification marks
Can bus drag chain
- Wave impedance
120 Ω
- Type
CAN-Bus
- Twisted pair cabling (part 1)
Yes (1)
