Name: HELU TOPGEBER 512 Bus cable 4 x 0.20 mm² + 2 x 0.38 mm² Green 804767 50 m
Brand: HELU
SKU: 2469238

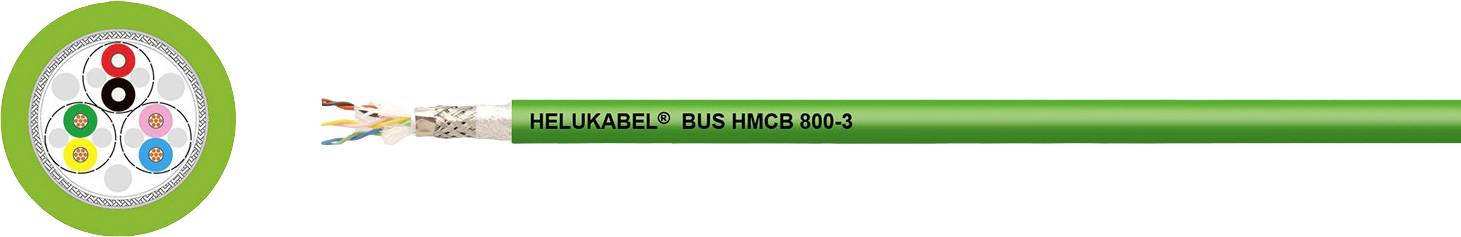

Cross-section of a green data cable with five colour-coded cores: Red, Black, White, Yellow, Blue. "HELU KABEL" inscription.

Product type

Bus cable

No. of leads

4 x

Cross section (each core)

0.20 mm²

Cable type

TOPGEBER 512

Outside Ø

6.95 mm

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Bus cable

No. of leads: 4 x

Content: 50 m

Cross section (each core): 0.20 mm²

Cable features: Suitable for drag chains
UV-resistant
Oil-resistant
Shielded
Flame-retardant

Cross section (each core) (part 2): 0.38 mm²

No. of leads (part 2): 2 x

Cable type: TOPGEBER 512

Outside Ø: 6.95 mm

Bend radius (no. of ODs for fixed installation): 6

Bend radius (no. of ODs for flexible installation): 10

Halogen-free: Yes

Manufacturer part #: 804767

Factory colour: Green

Core layout: CU, extra-fine strand to DIN EN 60228, class 6

Material (details): PUR

Nominal voltage U0: 30 V

Test voltage: 2000 V

Cross section: 4 x 0.20 mm² + 2 x 0.38 mm²

Max. temperature range (flexible installation): +80 °C

Min. temperature range (flexible installation): -30 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Type: 804767
