Name: HELU TOPSERV® 108 Servo lead 4 G 1.5 mm² Orange 707250 50 m
Brand: HELU
SKU: 2469313

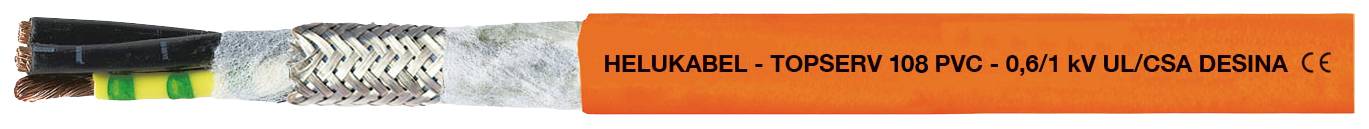

Orange cable with printed text 'HELUKABEL - TOPSERV 108 PVC - 0,6/1 kV UL/CSA DESINA CE', partially stripped, revealing internal wires.

Product type

Servo lead

No. of leads

4 G

Cross section (each core)

1.5 mm²

Cable type

TOPSERV® 108

Outside Ø

8.00 mm

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Servo lead

No. of leads: 4 G

Content: 50 m

Cross section (each core): 1.5 mm²

Cable features: Oil-resistant
Shielded
Flame-retardant

Cable type: TOPSERV® 108

Outside Ø: 8.00 mm

Bend radius (no. of ODs for fixed installation): 5

Bend radius (no. of ODs for flexible installation): 15

Halogen-free: No

Manufacturer part #: 707250

Factory colour: Orange

Core layout: Plain copper, fine strand to DIN EN 60228, class 5

Material (details): PVC

Nominal voltage: 1000 V

Nominal voltage U0: 600 V

Test voltage: 4000 V

Cross section: 4 G 1.5 mm²

Max. temperature range (flexible installation): +60 °C

Min. temperature range (flexible installation): 0 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -20 °C

Type: 707250
