Name: HELU TOPSERV® 109 Servo lead 4 G 4 mm² Orange 75945 50 m
Brand: HELU
SKU: 2469358

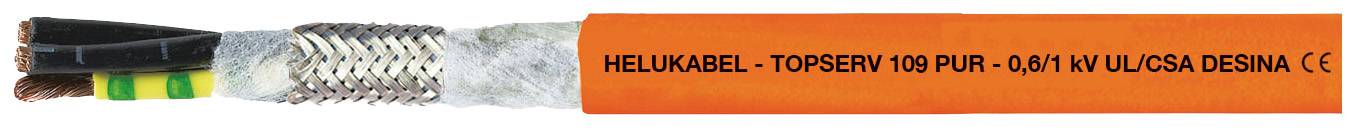

Orange cable with inscription 'Helukabel - Topserv 100 PUR - 0,6/1 kV UL/CSA DESINA CE', partially exposed.

Product type

Servo lead

No. of leads

4 G

Cross section (each core)

4 mm²

Cable type

TOPSERV® 109

Outside Ø

12.10 mm

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Servo lead

No. of leads: 4 G

Content: 50 m

Cross section (each core): 4 mm²

Cable features: Suitable for drag chains
UV-resistant
Oil-resistant
Shielded
Flame-retardant

Cable type: TOPSERV® 109

Outside Ø: 12.10 mm

Bend radius (no. of ODs for fixed installation): 4

Bend radius (no. of ODs for flexible installation): 7.5

Halogen-free: Yes

Manufacturer part #: 75945

Factory colour: Orange

Core layout: Plain copper, extra-fine wire according to DIN EN 60228, class 6

Material (details): PUR

Nominal voltage: 1000 V

Nominal voltage U0: 600 V

Test voltage: 4000 V

Cross section: 4 G 4 mm²

Max. temperature range (flexible installation): +80 °C

Min. temperature range (flexible installation): -30 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Type: 75945
