Name: HELU TOPSERV® 109 Servo lead 4 G 70 mm² Orange 700437 100 m
Brand: HELU
SKU: 2469366

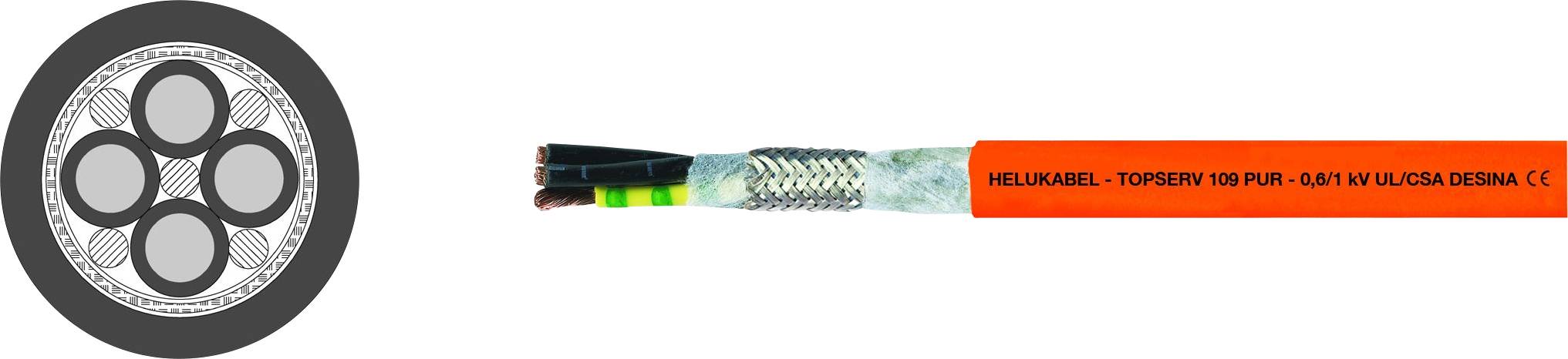

'Helukabel - TOPSERV 100 PUR' cable with the shown cross-section. Cable jacket in luminous orange, with multiple cores inside.

Image similar

Product type

Servo lead

No. of leads

4 G

Cross section (each core)

70 mm²

Cable type

TOPSERV® 109

Outside Ø

39.90 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Servo lead

No. of leads: 4 G

Content: 100 m

Cross section (each core): 70 mm²

Cable features: Suitable for drag chains
UV-resistant
Oil-resistant
Shielded
Flame-retardant

Cable type: TOPSERV® 109

Outside Ø: 39.90 mm

Bend radius (no. of ODs for fixed installation): 4

Bend radius (no. of ODs for flexible installation): 7.5

Halogen-free: Yes

Manufacturer part #: 700437

Factory colour: Orange

Core layout: Plain copper, extra-fine wire according to DIN EN 60228, class 6

Material (details): PUR

Nominal voltage: 1000 V

Nominal voltage U0: 600 V

Test voltage: 4000 V

Cross section: 4 G 70 mm²

Max. temperature range (flexible installation): +80 °C

Min. temperature range (flexible installation): -30 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Type: 700437

Variants(All information is without VAT, plus shipping costs)

No. of leads

Content

Cable type

Cross section (each core)

Outside Ø

Product type

Cable features

HELU TOPGEBER 511 Resolver cable 16 x 0.18 mm² Green 700655 100 m

Item no:2469225

Unavailable

Conrad Electronic

16 x

100 m

TOPGEBER 511

0.18 mm²

7.80 mm

Resolver cable

Suitable for drag chains

Piece(s)

Minimum order quantity: 1

Multiple: 1

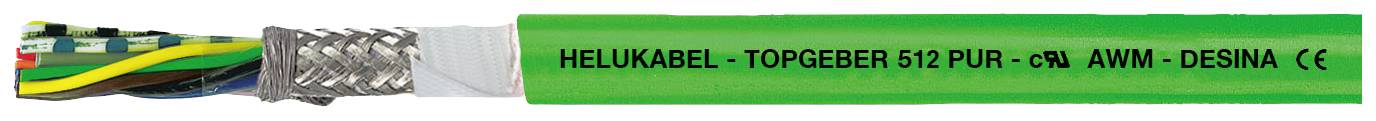

HELU TOPGEBER 511 Resolver cable 16 x 0.18 mm² Green 700655 50 m

Item no:2469226

Unavailable

Conrad Electronic

16 x

50 m

TOPGEBER 511

0.18 mm²

7.80 mm

Resolver cable

Suitable for drag chains

Piece(s)

Minimum order quantity: 1

Multiple: 1

HELU TOPGEBER 511 Resolver cable 16 x 0.18 mm² Green 700655 500 m

Item no:2469227

Unavailable

Conrad Electronic

16 x

500 m

TOPGEBER 511

0.18 mm²

7.80 mm

Resolver cable

Suitable for drag chains

Piece(s)

Minimum order quantity: 1

Multiple: 1

HELU TOPGEBER 511 Resolver cable 4 x 0.22 mm² + 2 x 0.34 mm² Green 803672 100 m

Item no:2469207

Unavailable

Conrad Electronic

4 x

100 m

TOPGEBER 511

0.22 mm²

6.95 mm

Resolver cable

Oil-resistant

Piece(s)

Minimum order quantity: 1

Multiple: 1

HELU TOPGEBER 511 Resolver cable 4 x 0.22 mm² + 2 x 0.34 mm² Green 803672 50 m

Item no:2469208

Unavailable

Conrad Electronic

4 x

50 m

TOPGEBER 511

0.22 mm²

6.95 mm

Resolver cable

Oil-resistant

Piece(s)

Minimum order quantity: 1

Multiple: 1

HELU TOPGEBER 511 Resolver cable 4 x 0.22 mm² + 2 x 0.34 mm² Green 803672 500 m

Item no:2469209

Unavailable

Conrad Electronic

4 x

500 m

TOPGEBER 511

0.22 mm²

6.95 mm

Resolver cable

Oil-resistant

Piece(s)

Minimum order quantity: 1

Multiple: 1

HELU TOPGEBER 511 Resolver cable 4 x 0.22 mm² Green 802471 100 m

Item no:2469210

Unavailable

Conrad Electronic

4 x

100 m

TOPGEBER 511

0.22 mm²

6.85 mm

Resolver cable

Oil-resistant

Piece(s)

Minimum order quantity: 1

Multiple: 1

HELU TOPGEBER 511 Resolver cable 4 x 0.22 mm² Green 802471 50 m

Item no:2469211

Unavailable

Conrad Electronic

4 x

50 m

TOPGEBER 511

0.22 mm²

6.85 mm

Resolver cable

Oil-resistant

Piece(s)

Minimum order quantity: 1

Multiple: 1

HELU TOPGEBER 511 Resolver cable 4 x 0.22 mm² Green 802471 500 m

Item no:2469212

Unavailable

Conrad Electronic

4 x

500 m

TOPGEBER 511

0.22 mm²

6.85 mm

Resolver cable

Oil-resistant

Piece(s)

Minimum order quantity: 1

Multiple: 1

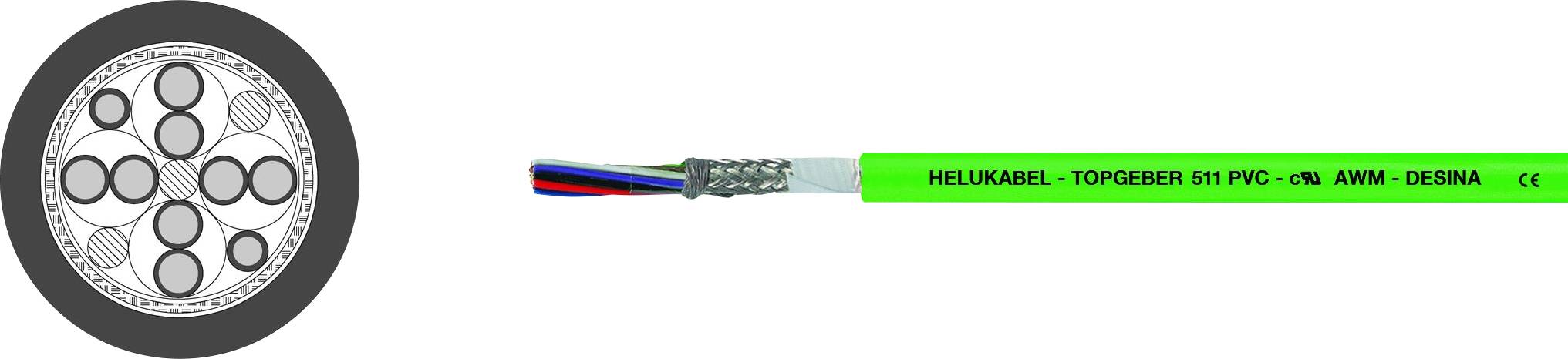

HELU TOPGEBER 511 Resolver cable 6 x 0.14 mm² + 4 x 0.14 mm² Green 707389 100 m
