Name: HELU TOPSERV® 112 Servo lead 4 G 16 mm² + 2 x 1.50 mm² Orange 707285 500 m
Brand: HELU
SKU: 2469386

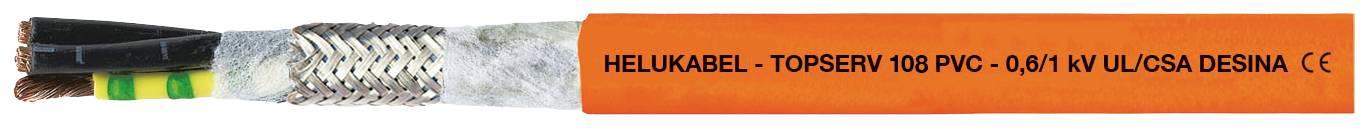

Cable with orange outer sheathing, metal shielding and black, blue, green internal wiring. Labelled 'HELUKABEL - TOPSERV 100 PVC...'

Product type

Servo lead

No. of leads

4 G

Cross section (each core)

16 mm²

Cable type

TOPSERV® 112

Outside Ø

24.10 mm

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Servo lead

No. of leads: 4 G

Content: 500 m

Cross section (each core): 16 mm²

Cable features: Oil-resistant
Shielded
Flame-retardant

Cross section (each core) (part 2): 1.50 mm²

No. of leads (part 2): 2 x

Cable type: TOPSERV® 112

Outside Ø: 24.10 mm

Bend radius (no. of ODs for fixed installation): 5

Bend radius (no. of ODs for flexible installation): 15

Halogen-free: No

Manufacturer part #: 707285

Factory colour: Orange

Core layout: Plain copper, fine strand to DIN EN 60228, class 5

Material (details): PVC

Nominal voltage: 1000 V

Nominal voltage U0: 600 V

Test voltage: 4000 V

Cross section: 4 G 16 mm² + 2 x 1.50 mm²

Max. temperature range (flexible installation): +60 °C

Min. temperature range (flexible installation): 0 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -20 °C

Type: 707285
