Name: HELU TOPSERV® 113 Servo lead 4 G 2.5 mm² + 2 x 1.5 mm² Orange 78949 50 m
Brand: HELU
SKU: 2469433

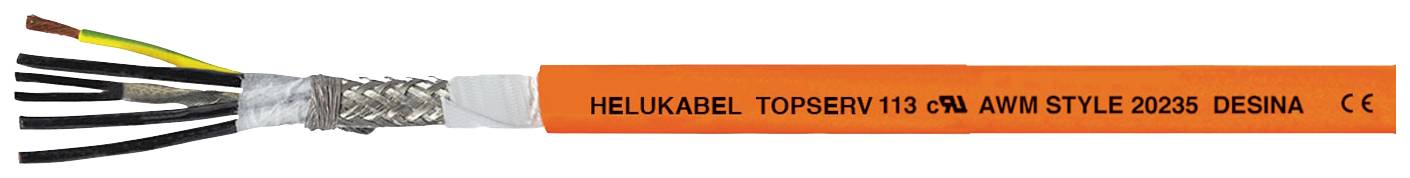

An orange cable marked 'HELUKABEL TOPSERV 113 C4 AWG STYLE 20235 DESINA CE'. Several wires are visible.

Product type

Servo lead

No. of leads

4 G

Cross section (each core)

2.5 mm²

Cable type

TOPSERV® 113

Outside Ø

13.30 mm

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Servo lead

No. of leads: 4 G

Content: 50 m

Cross section (each core): 2.5 mm²

Cable features: Suitable for drag chains
UV-resistant
Oil-resistant
Shielded
Flame-retardant

Cross section (each core) (part 2): 1.5 mm²

No. of leads (part 2): 2 x

Cable type: TOPSERV® 113

Outside Ø: 13.30 mm

Bend radius (no. of ODs for fixed installation): 4

Bend radius (no. of ODs for flexible installation): 7.5

Halogen-free: Yes

Manufacturer part #: 78949

Factory colour: Orange

Core layout: Plain copper, extra-fine wire according to DIN EN 60228, class 6

Material (details): PUR

Nominal voltage: 1000 V

Nominal voltage U0: 600 V

Test voltage: 4000 V

Cross section: 4 G 2.5 mm² + 2 x 1.5 mm²

Max. temperature range (flexible installation): +80 °C

Min. temperature range (flexible installation): -30 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Type: 78949
