Name: HELU TOPSERV® 113 Servo lead 4 G 6 mm² + 2 x 1 mm² Orange 707232 100 m
Brand: HELU
SKU: 2469453

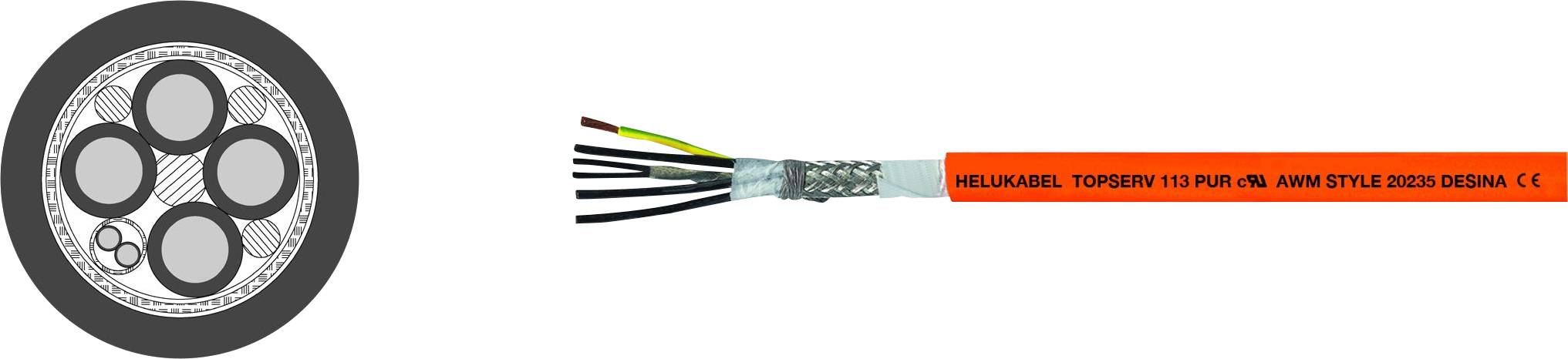

Cross-section and side view of a multi-core, orange-sheathed cable with the inscription 'HELUKABEL TOPSERV 113'.

Image similar

Product type

Servo lead

No. of leads

4 G

Cross section (each core)

6 mm²

Cable type

TOPSERV® 113

Outside Ø

17.60 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Servo lead

No. of leads: 4 G

Content: 100 m

Cross section (each core): 6 mm²

Cable features: Suitable for drag chains
UV-resistant
Oil-resistant
Shielded
Flame-retardant

Cross section (each core) (part 2): 1 mm²

No. of leads (part 2): 2 x

Cable type: TOPSERV® 113

Outside Ø: 17.60 mm

Bend radius (no. of ODs for fixed installation): 4

Bend radius (no. of ODs for flexible installation): 7.5

Halogen-free: Yes

Manufacturer part #: 707232

Factory colour: Orange

Core layout: Plain copper, extra-fine wire according to DIN EN 60228, class 6

Material (details): PUR

Nominal voltage: 1000 V

Nominal voltage U0: 600 V

Test voltage: 4000 V

Cross section: 4 G 6 mm² + 2 x 1 mm²

Max. temperature range (flexible installation): +80 °C

Min. temperature range (flexible installation): -30 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Type: 707232
