Hensel 2000006 Hensel empty housing 600x600x170 mi 0800 Housing Plastic 1 pc(s)
EAN:
Part number:
Item no:
Product type
Housing
Factory colour
Multicolour
Dim

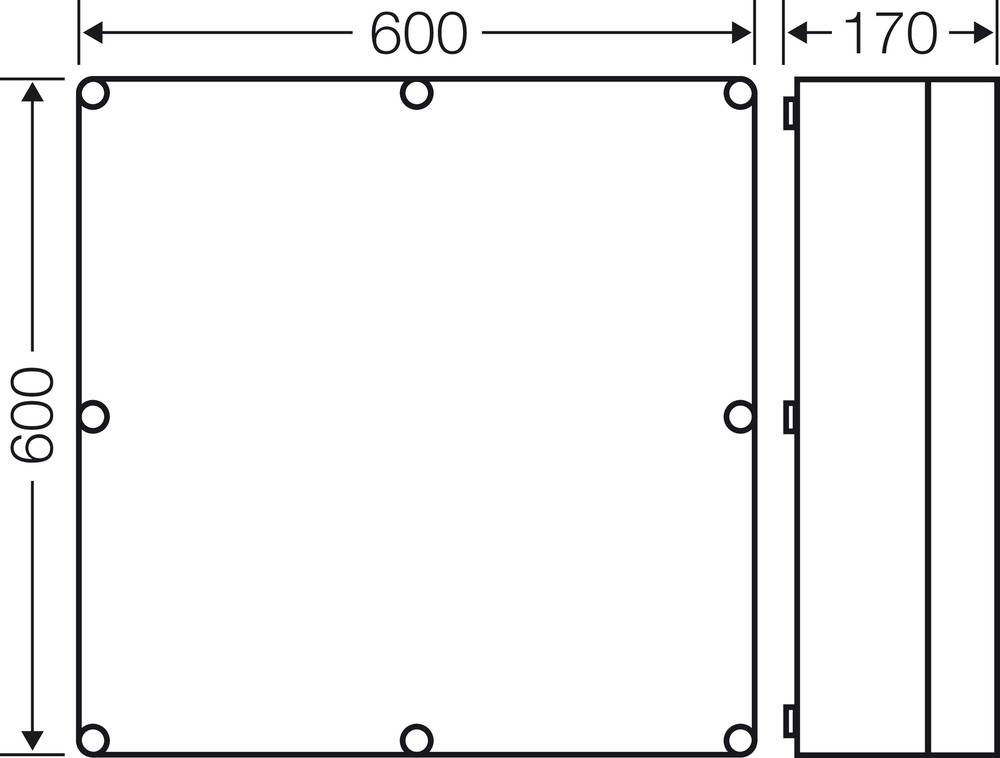

(W x H x D) 600.00 x 600.00 x 170.00 mm
Content
1 pc(s)
Material
Plastic
Technical specifications
- Mounting type: Surface-mounted
- Type of cover: Cover
- Cover version: Closed
- Type of door: Without
- Transparent lid/door: Yes
- With lock: No.
- Height: 600 mm
- Width 600 mm
- Depth: 170 mm
- Installation depth: 146 mm
- Internal depth 146 mm
- Material thickness of housing 3 mm
- Material thickness door/lid 3 mm
- RAL number: 7035
- Number of modules: 1
- Number of rows: 1
- Number of openings for flange plates: 8
- Mounting option: Yes
- Housing material: Plastic
- Surface protection: Untreated
- With mounting plate: No.
- Suitable for outside use: Yes
- Suitable for lightning protection: No.
- Protection class (IP) IP65
- Protection class: II
- Impact strength: IK08
- Function retention: Without
- Product type
Housing
- Factory colour
Multicolour
- Dim
(W x H x D) 600.00 x 600.00 x 170.00 mm
- Content
1 pc(s)
- Material
Plastic
- Width
600.00 mm
- Height
600.00 mm
- Depth
170.00 mm
IP65
- Wireless charging
No
- Protection class
II
- Weight
6.26
Surface mounted (plaster)
II
600
600 mm
170 mm
7035
FALSE
Untreated
146 mm
1
Cover
0
Plastic
IK08
IP65
FALSE
Closed
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3163025 Hensel 2000006 Hensel empty housing 600x600x170 mi 0800 Housing Plastic 1 pc(s)
Description

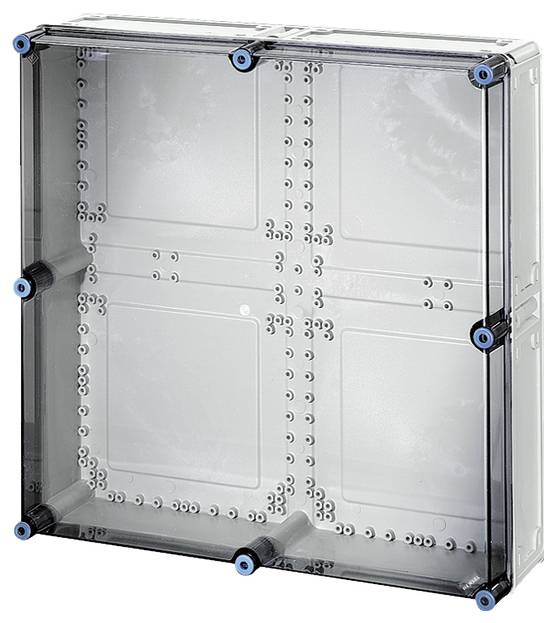

Housing for the building of energy-switching device combinations up to 630 A, or as individual housing. Made of high-quality polycarbonate with protective insulation. Wall penetrations with large openings for the electrical connection of the casings with each other. Cable entry at all housing walls by metric knockouts or extension flanges. Case for wall mounting even on external lugs or with mounting rails. Empty housing with transparent cover. Assembly dimensions B 575 x H 575 x T 150 mm for the installation of devices on mounting plate or DIN rail. Max. Installation depth with built-in mounting plate is 146 mm, with integrated mounting rail 135 mm. Lid closures with tool activation.
