Hensel 20001168 20001168 Inverter
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Surface-mounted
- Number of rows: 6
- Width in division units: 12
- Type of cover: Cover
- Cover version: Closed
- Transparent lid/door: Yes
- Housing material: Plastic

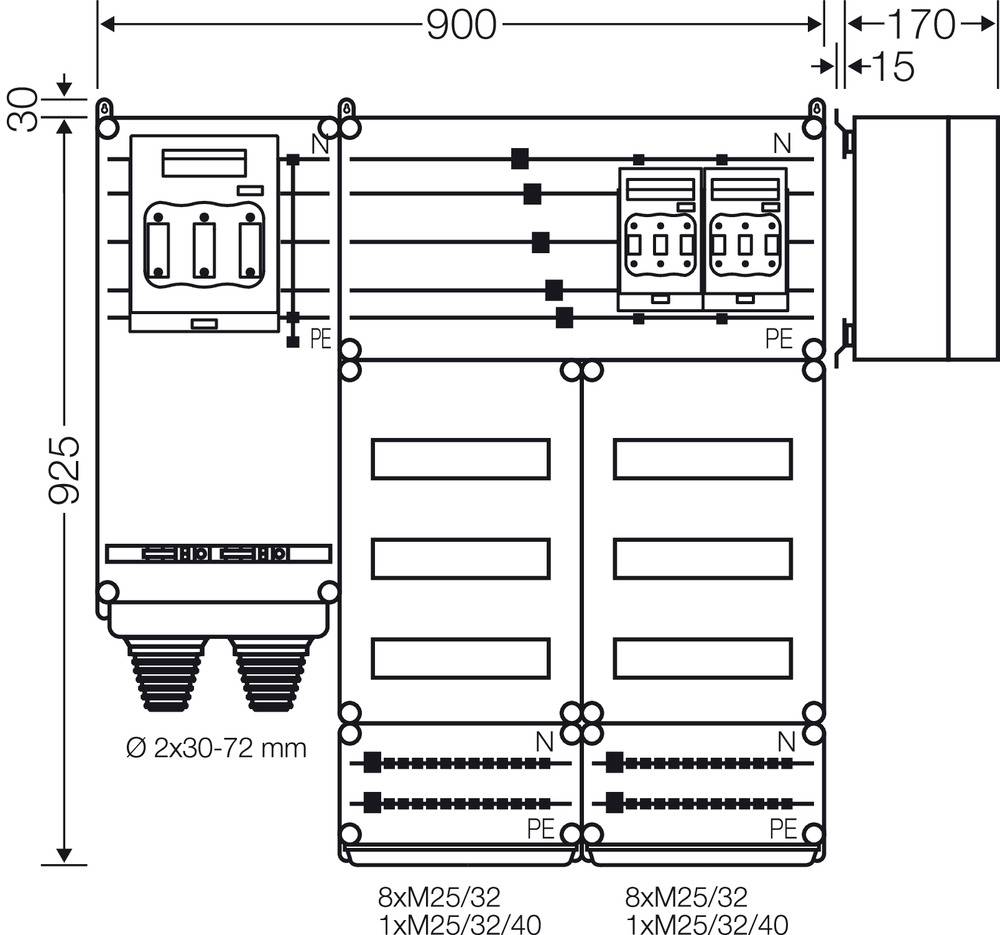

- Height: 925 mm
- Width 900 mm
- Depth: 214 mm
- Installation depth: 93 mm
- Internal depth 146 mm
- DIN rail: Yes
- With mounting plate: No.
- Mounting option: Yes
- EMC type: No.
- Colour: grey
- RAL number: 7035
- Protection class (IP) IP65
- With lock: No.
- Product type
Inverter
- Dim
(L x W x H) 925 x 900.00 x 925.00 mm
- Solar energy system features
Inverter
- Factory colour
Grey
- Width
900.00 mm
- Height
925.00 mm
- Depth
214.00 mm
- Length
925 mm
IP65
- Material
Plastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162999 Hensel 20001168 20001168 Inverter
Description

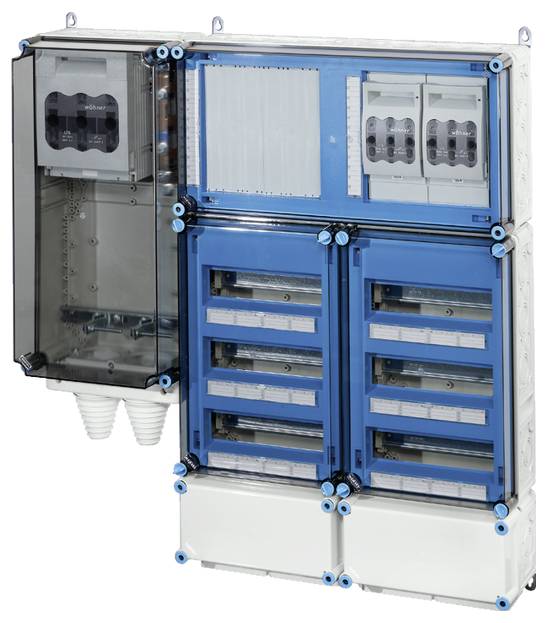

Inverter collectors according to IEC 61439 for PV systems are supplied as a complete set. The housings made of high-quality thermoplastic are insulated, protection class IP 54/IP 65. Inverter collectors can be extended by the function lightning and overvoltage protection or fault current protection (RCD). They are suitable for sheltered outdoor installation and UV-resistant. PV inverter module collectors up to 140 kVA with automatic controller case. Max. 36 x 1~ power inverter or 12 x 3~ power inverter. Wall mounting via external stainless steel straps.
