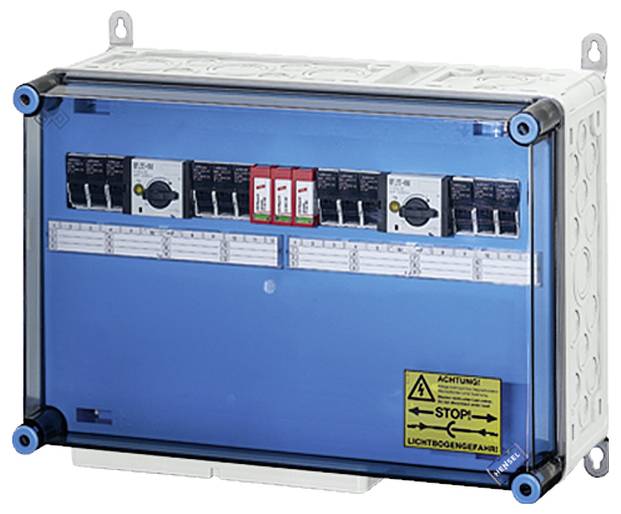

Hensel 20001251 Mi PV 3321 Generator junction box
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Rated insulation voltage UI 1000 V.
- Lid mounting: Screwed
- Introduction from behind: no.
- Operating temperature: -5..40 °C.
- Surface: Untreated
- Protection system: IP65
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Product type
Generator junction box

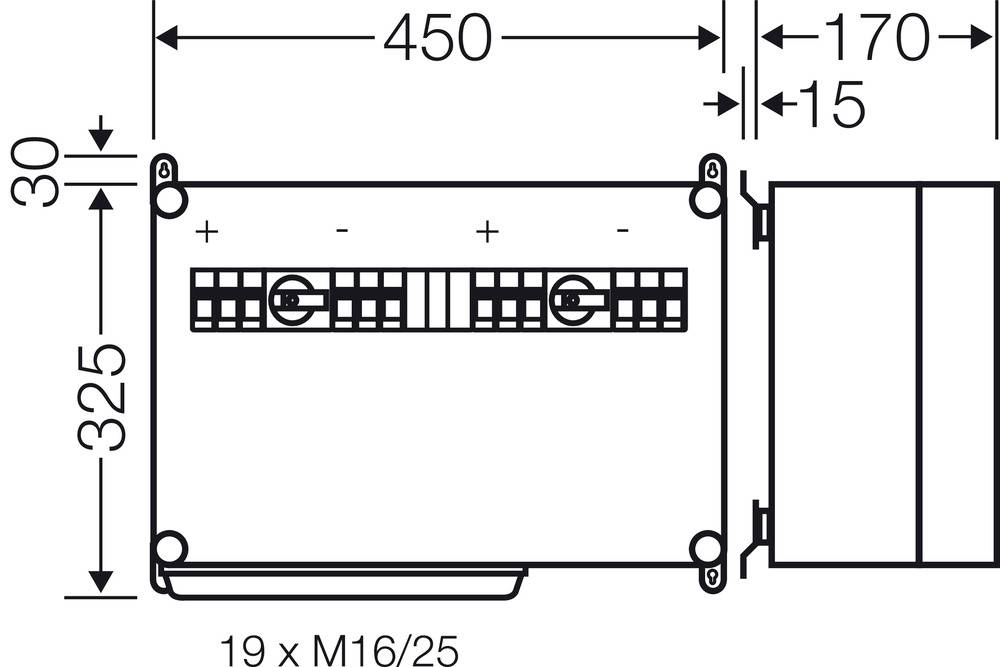

- Dim
(L x W) 325 mm x 450 mm
- Type
With socket and fuse
- Factory colour
Grey
- Content
1 pc(s)
- Width
450 mm
- Depth
170 mm
- Length
325 mm
- Mounting type
Surface-mount
- Features
Halogen-free
Weather-proof
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297803 Hensel 20001251 Mi PV 3321 Generator junction box
Description
Generator connection box for PV systems up to 1000 V dc according to IEC 61439, completely mounted and wired ready for connection. The housings are made of high-quality thermoplastic and are insulated with protection class IP 65. As required, PV generator junction boxes are equipped with surge arresters, generator circuit breakers and phase fuses. They are suitable for protected installation outdoors and UV-resistant. The wall mounting is done via external brackets made of stainless steel. PV generator junction box with phase fuses, type 2 DC surge arresters and 2 DC generator circuit breakers. 6 x PV string to 1 x inverter input. Each 6 x fuse holder + and - for cylindrical fuse links. Lid closures for tool actuation.
