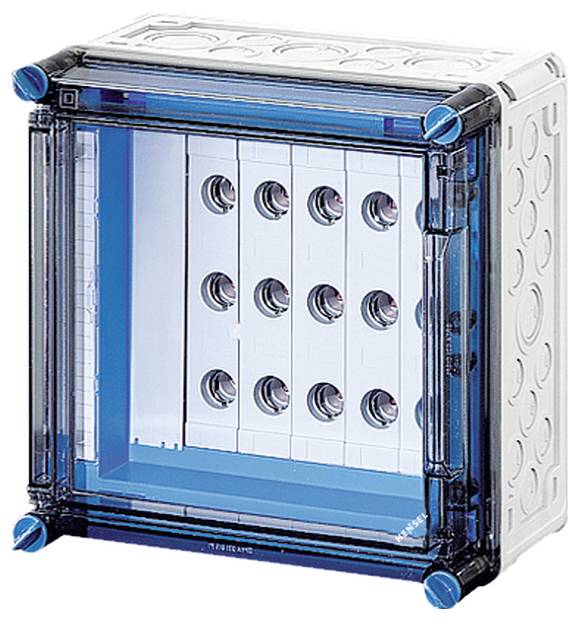

Hensel 20001278 Fuse holder 63 A
EAN:
Part number:
Item no:
Product type
Fuse holder
Fuse size
D02
Nominal current - rounded value
63 A
Number of pins
3
Nominal current
63 A
Technical specifications
- Attachment option: Yes
- Number of groups: 3
- With transparent cover: Yes
- Placement on rail system: universal
- Protection system: IP65
- Housing material: Plastic
- Product type
Fuse holder
- Fuse size
D02
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Number of pins
3

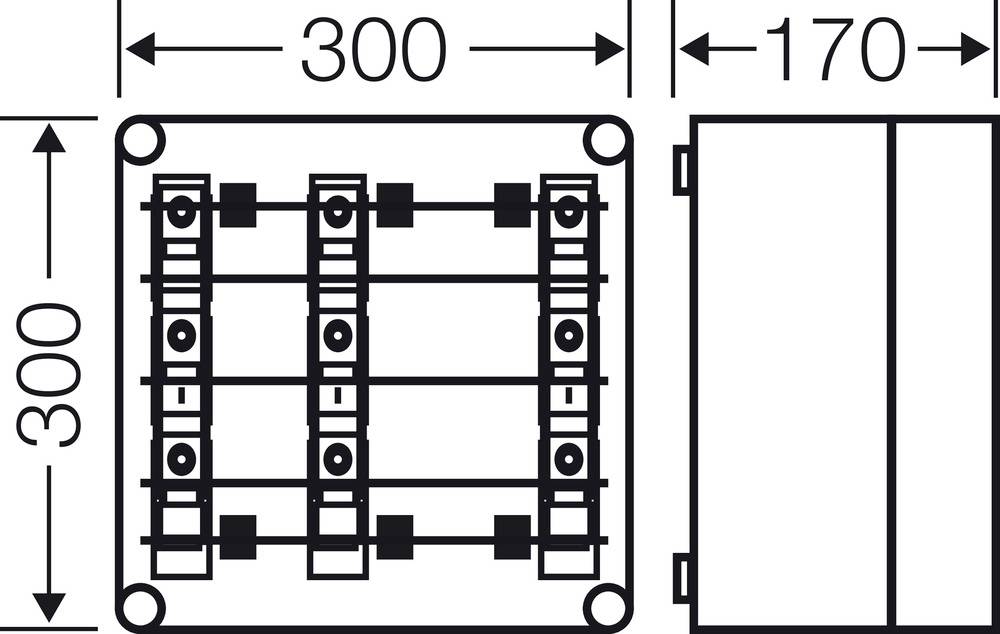

- Dim
(W x H x D) 300 x 300 x 170 mm
- Model
3-phase
- Content
1 pc(s)
- Suitable for
Fuse size 000 - 4
- Width
300 mm
- Height
300 mm
- Depth
170 mm
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296826 Hensel 20001278 Fuse holder 63 A
Description
Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Housing with 3 switch disconnectors for D02 fuse links on busbars. Housing for combination only. With PE and N terminals and touch protection. Lid locks for manual operation.
