Hensel 20001383 Mi 2444 Switchboard cabinet Surface-mount Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Mounting type
Surface-mount
Width
600 mm
Height
300 mm
Depth
170 mm
Technical specifications
- Attachment option: Yes
- Rated current rail system 400 A.
- Short-circuit strength 15 kA
- Equipped with bus bar: Yes
- With transparent cover: Yes
- Number of pins: 5
- Protection system: IP65
- Housing material: Plastic
- Product type
Switchboard cabinet
- Mounting type
Surface-mount
- Factory colour
Grey
- Width
600 mm
- Height
300 mm
- Dim

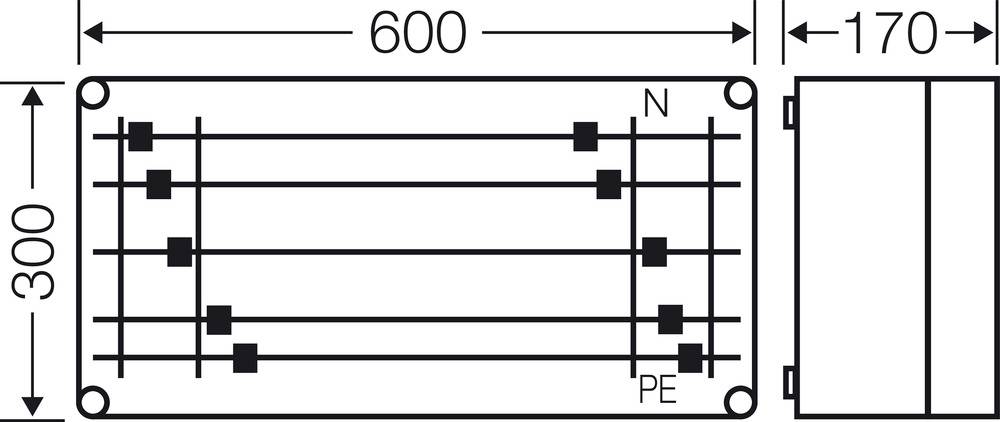

(W x H x D) 600 x 300 x 170 mm
- Depth
170 mm
- Content
1 pc(s)
- Short-circuit withstand rating (Icw)
15 kA
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2294207 Hensel 20001383 Mi 2444 Switchboard cabinet Surface-mount Content 1 pc(s)
Description

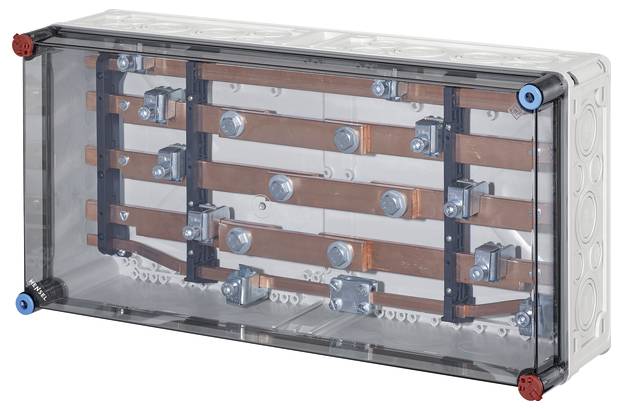

Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Housing for the installation of 3 plug-on current transformers (order separately). For internal measurement up to 400 A, horizontal alignment. Combination with 250 A and 400 A busbar system is possible. Voltage tap with screw connection M5. Lid closures for tool actuation, sealable.
