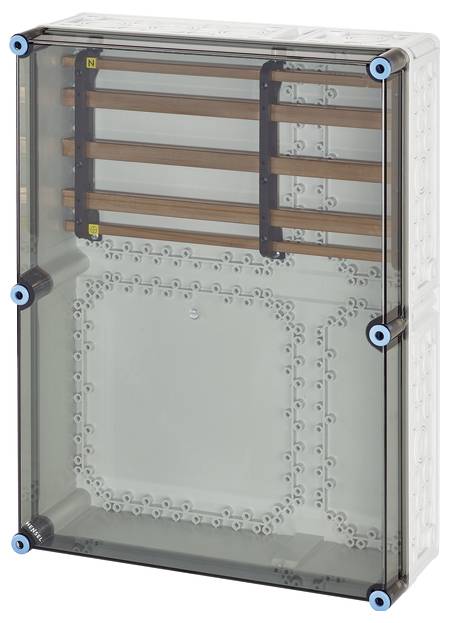

Hensel 20001421 Mi 6658 Switchboard cabinet Surface-mount Content 1 pc(s)
Product type
Switchboard cabinet
Mounting type
Surface-mount
Width
450 mm
Height
600 mm
Depth
170 mm
EAN:
Part number:
Item no:
Technical specifications
- Attachment option: Yes
- Rated current rail system 400 A.
- Short-circuit strength 45 kA
- Equipped with bus bar: Yes
- With transparent cover: Yes
- Number of pins: 5
- Protection system: IP65
- Housing material: Plastic
- Product type
Switchboard cabinet
- with PE and N terminals
No
- Mounting type
Surface-mount
- Factory colour
Grey
- Width
450 mm
- Height
600 mm
- Dim

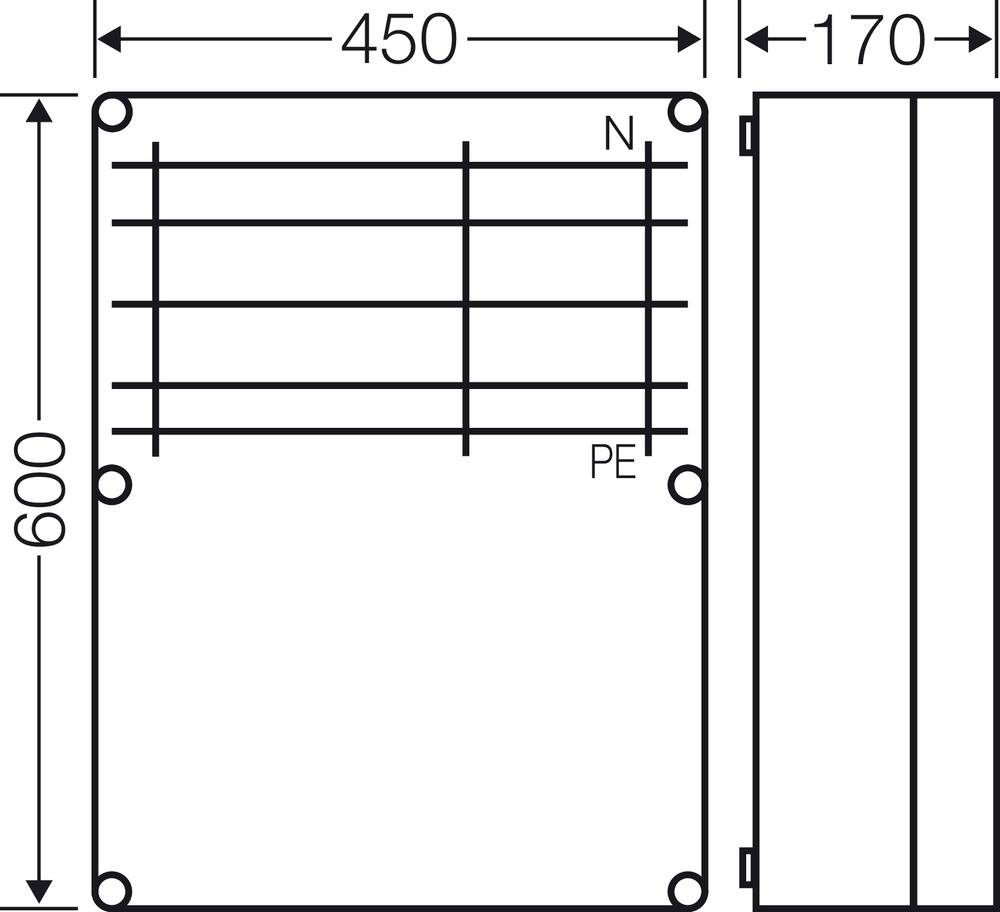

(W x H x D) 450 x 600 x 170 mm
- Depth
170 mm
- Content
1 pc(s)
- Short-circuit withstand rating (Icw)
45 kA
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295197 Hensel 20001421 Mi 6658 Switchboard cabinet Surface-mount Content 1 pc(s)
Description
Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Housing with busbars, without device, without terminals. Lid closures for tool actuation.
