Hensel 20001583 20001583 Inverter
EAN:
Part number:
Item no:
Technical specifications
- Fuse disconnect housing features: With fuse disconnect switch
- Number of poles: 3
- Rated operating current Ie: 320 A.
- Max. Rated operating voltage Ue at AC: 690 V
- Rated insulation voltage UI 800 V
- Size of the fuse inserts: NH000
- With fuse monitoring: No.

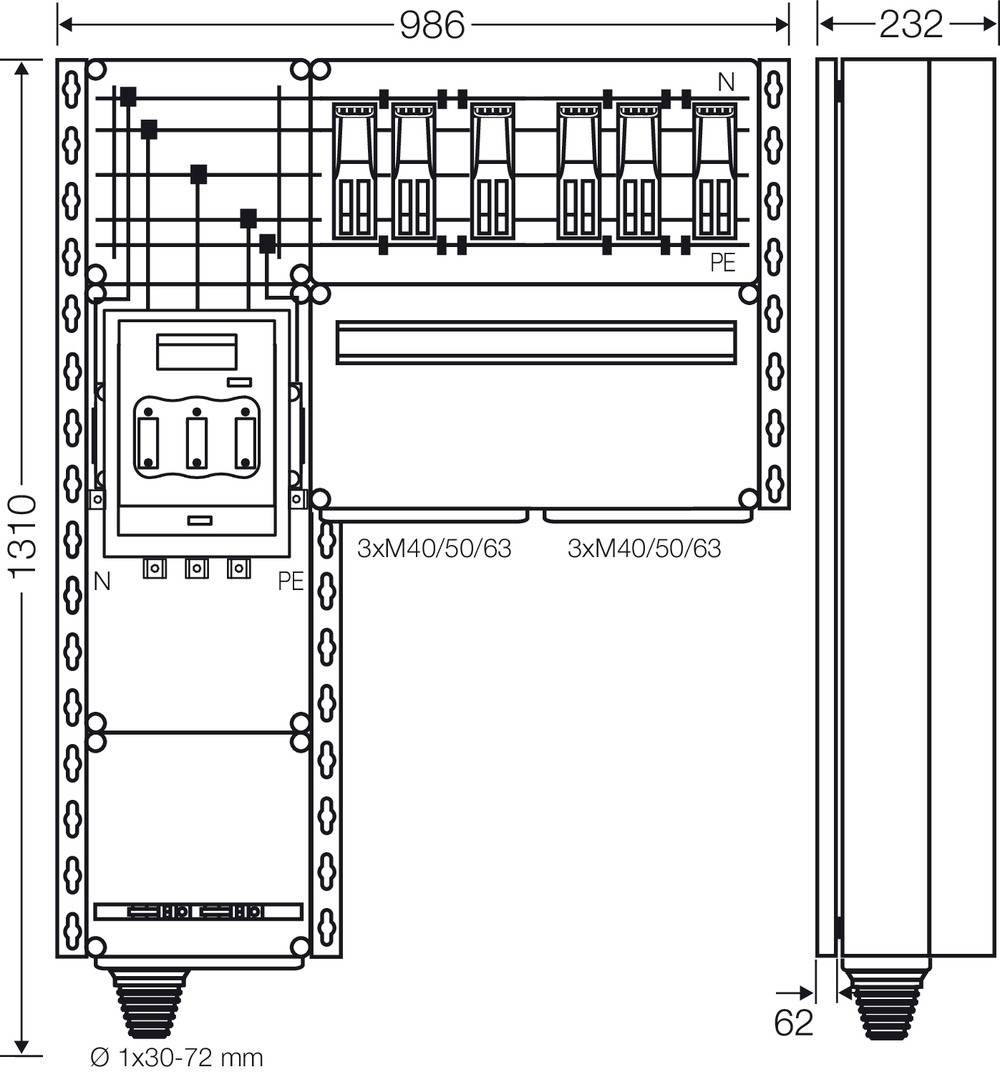

- Case width 986 mm
- Housing depth 276 mm
- Housing height 1335 mm
- Protection class (IP) IP54
- Product type
Inverter
- Nominal voltage (details)
690 - 800 V
- Dim
(L x W x H) 1335 x 986.00 x 1335.00 mm
- Solar energy system features
Inverter
- Nominal current
320.0 A
- Width
986.00 mm
- Height
1335.00 mm
- Depth
276.00 mm
- Length
1335 mm
IP54
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162996 Hensel 20001583 20001583 Inverter
Description

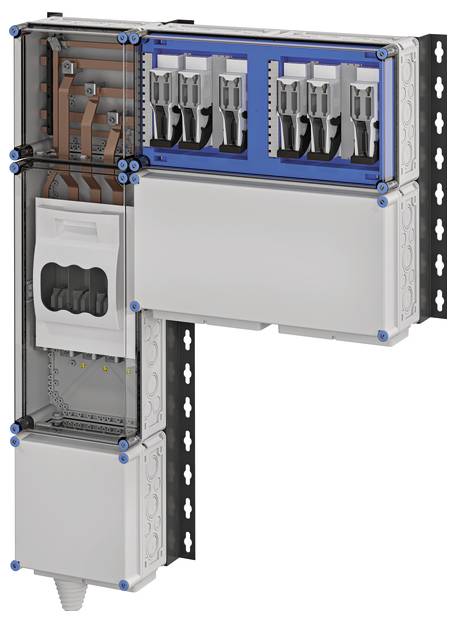

Inverter collectors according to IEC 61439 for PV systems are delivered ready for connection The housings made of high-quality thermoplastic are insulated with protection class IP 54. Inverter modules can be expanded by the flash and overvoltage protection function. They are suitable for sheltered outdoor installation and UV-resistant. PV inverter collector up to 220 kVA with NH 000 fuse disconnector. Max. 6 x 3~ power inverter. Wall mounting on mounting rails made of zinc-coated and powder-coated steel plate.
