Hensel 2000160 NH fuse holder 400 A
EAN:
Part number:
Item no:
Product type
NH fuse holder
Fuse size
2
Nominal current - rounded value
400 A
Number of pins
3
Nominal current
400 A
Technical specifications
- Attachment option: Yes
- Number of groups: 1
- With transparent cover: Yes
- Placement on rail system: universal
- Protection system: IP65
- Housing material: Plastic
- Product type
NH fuse holder
- Fuse size
2
- Nominal current
400 A
- Nominal current - rounded value
400 A
- Number of pins
3

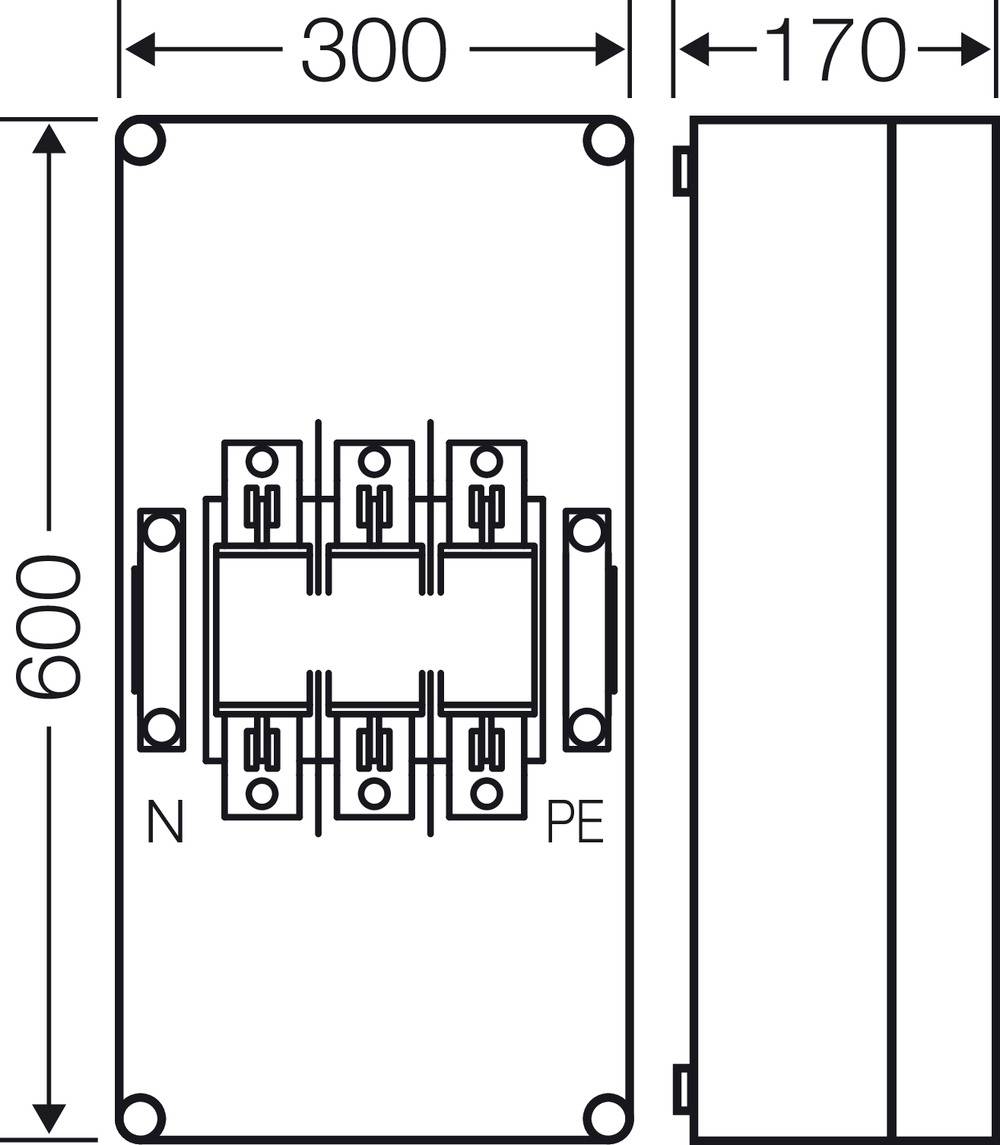

- Dim
(W x H x D) 300 x 600 x 170 mm
- Model
3-phase
- Content
1 pc(s)
- Suitable for
Fuse size 000 - 4
- Width
300 mm
- Height
600 mm
- Depth
170 mm
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297785 Hensel 2000160 NH fuse holder 400 A
Description

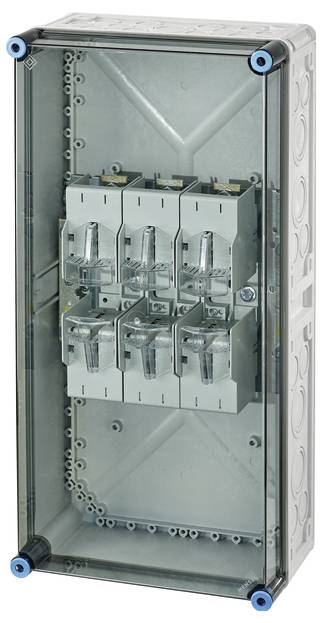

Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Housing with safety sections NH 2, 3-pin, according to IEC 60269 on mounting plate. With PE and N terminals for copper conductors. Lid closures for tool actuation.
