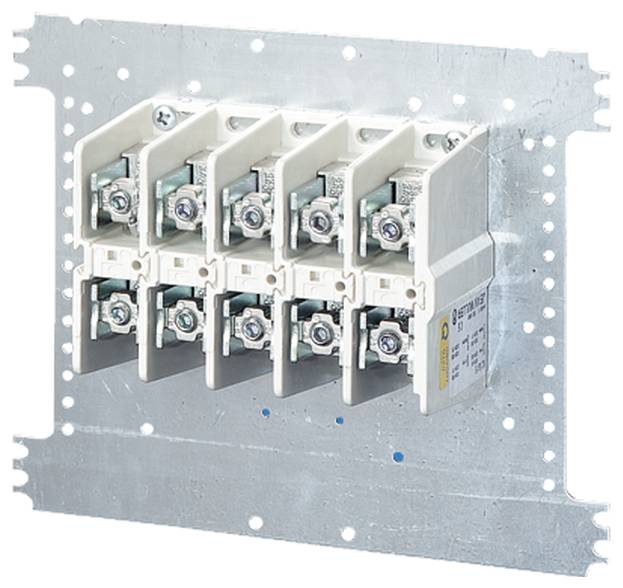

Hensel 2000547 Feeder terminal Screws Grey 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Feeder terminal
Connection
Screws
Cross section (flexible) (max.)
150 mm²
Cross section (inflexible) (max.)
150 mm²
Highlights & Details
Hensel feed-in terminal 150qmm, 5polig Mi VE 125
- Mi VE 125
Technical specifications
- Connectable conductor cross-section multi-strand 16..150 mm²
- Connection position: Lateral
- Number of terminal points per pole: 4
- Operating temperature 55 °C.
- Width/pitch 164 mm
- Height with low mounting type 150 mm
- Mounting type: Direct mounting
- Material of the insulating body: Duroplast
- Packaging type
Piece
- Product type
Feeder terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
16 mm²
- Cross section (flexible) (max.)
150 mm²
- Cross section (inflexible) (min.)
16 mm²
- Cross section (inflexible) (max.)
150 mm²
- Number of pins
5
- Factory colour
Grey
- Nominal current
250 A
- Nominal current - rounded value
250 A
- Nominal voltage
690 V
- Manufacturer part #
2000547
- Content
1 pc(s)
- Type
Mi VE 125
- Dim
(L x W x H) 121 x 164 x 150 mm
- Width
164 mm
- Height
150 mm
- Length
121 mm
- Weight
4.47
- Connector colour
Grey
- Insulation material
Duroplast
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297279 Hensel 2000547 Feeder terminal Screws Grey 1 pc(s)
Description
Feed terminal on mounting plate for installation in empty Mi housing sizes 2 to 8.
