Hensel 2000610 Mi 1448 Switchboard cabinet No. of partitions = 48 No. of rows = 4 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
No. of partitions
48
No. of rows
4
Width
300 mm
Height
600 mm
Datasheet (PDF)
Highlights & Details
Hensel machine casing
- 48 division units: 4 x 12 x 18 mm
- 4-row
- FIXCONNECT® plug-in terminal technology for PE and N
- The PE/N 6 x 25 mm², 24 x 4 mm², Cu
Technical specifications
- Product type
Switchboard cabinet
- No. of partitions
48
- with PE and N terminals
Yes
- No. of rows
4
- Factory colour
Grey-white (RAL 7035)
- Width
300 mm
- Height
600 mm
- Dim

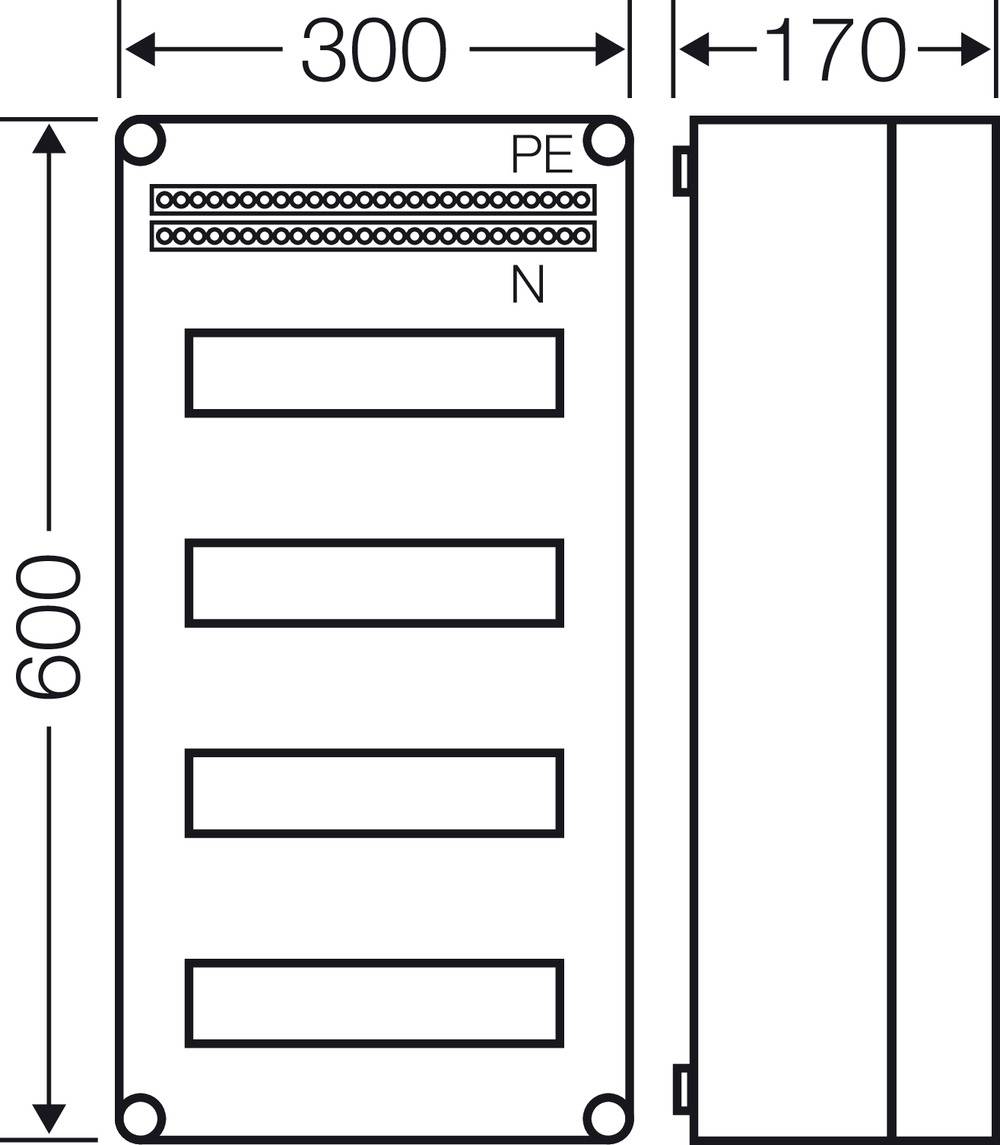

(W x H x D) 300 x 600 x 170 mm
- Depth
170 mm
- Content
1 pc(s)
- Weight
4.70
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1826966 Hensel 2000610 Mi 1448 Switchboard cabinet No. of partitions = 48 No. of rows = 4 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1826966 Hensel 2000610 Mi 1448 Switchboard cabinet No. of partitions = 48 No. of rows = 4 Content 1 pc(s)
Description
Suitable for interior rooms and the protected installation outdoors according to DIN VDE 0100 Part 737
This text is machine translated.
This text is machine translated.
Features
- N separable for different potentials
- For the installation of modular installation devices according to DIN 43880
- With Cover strips for the device cut-out
- Lid for manual operation
- Material: PC (polycarbonate)
- II protection rating
- Color: gray, RAL 7035
