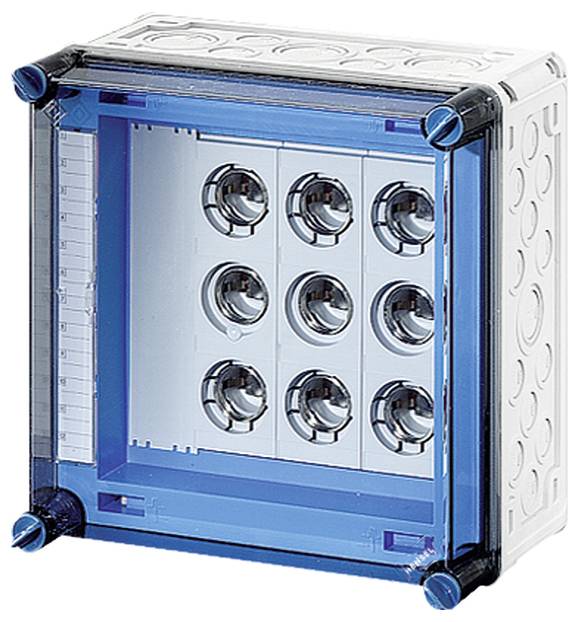

Hensel 2000625 Fuse holder 63 A
Product type
Fuse holder
Fuse size
DIII
Nominal current - rounded value
63 A
Nominal current
63 A
Dim

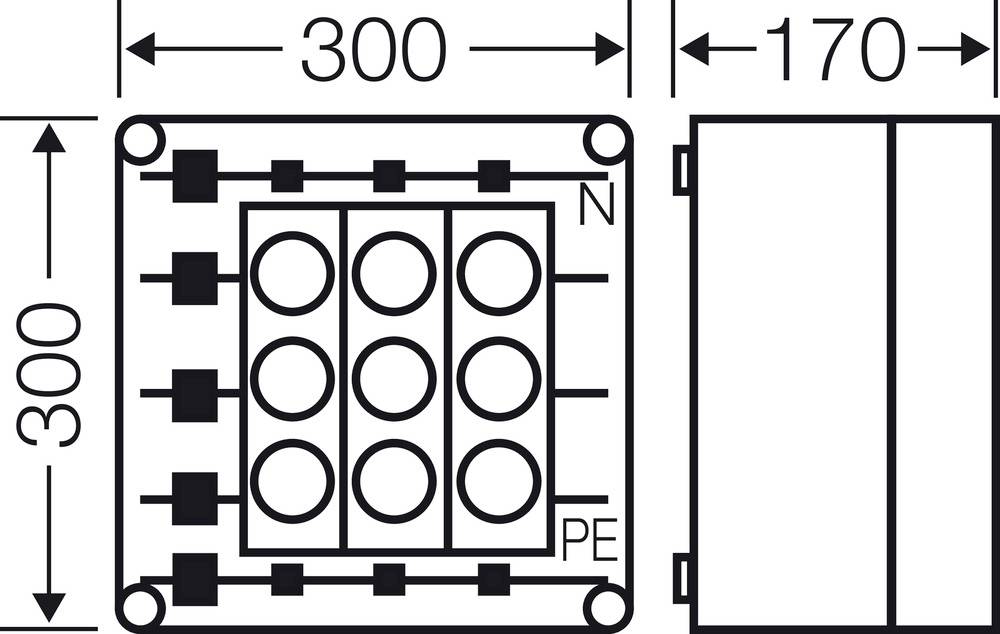

(W x H x D) 300 x 300 x 170 mm
EAN:
Part number:
Item no:
Technical specifications
- Attachment option: Yes
- Number of groups: 3
- With transparent cover: Yes
- Placement on rail system: universal
- Protection system: IP65
- Housing material: Plastic
- Product type
Fuse holder
- Fuse size
DIII
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Dim
(W x H x D) 300 x 300 x 170 mm
- Content
1 pc(s)
- Suitable for
Fuse size 000 - 4
- Width
300 mm
- Height
300 mm
- Depth
170 mm
- RoHS-compliant
Yes
- Weight
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2293061 Hensel 2000625 Fuse holder 63 A
Description
Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Housing with fuse elements for DIII fuse links, E 33, on busbars. With feed terminals, PE and N terminals and touch protection. Lid locks for manual operation.
