Hensel 2000643 Mi 6226 Switchboard cabinet Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Width
300 mm
Height
300 mm
Depth
170 mm
with PE and N terminals
Yes
Datasheet (PDF)
Highlights & Details

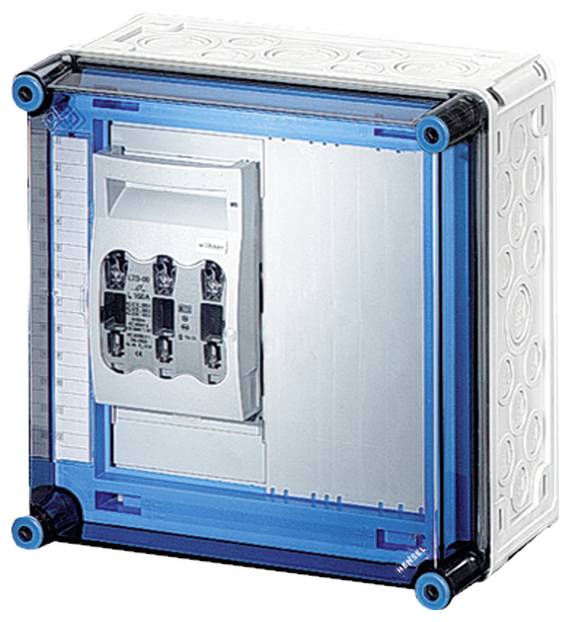

Hensel fuse switch disconnectors housing MI 6226 Mi-NH
- 1 x fuse switch disconnectors 160A, NH00, 3-pin
- Rated current of the busbar 250A
Technical specifications
- Product type
Switchboard cabinet
- with PE and N terminals
Yes
- Factory colour
Grey-white (RAL 7035)
- Width
300 mm
- Height
300 mm
- Dim

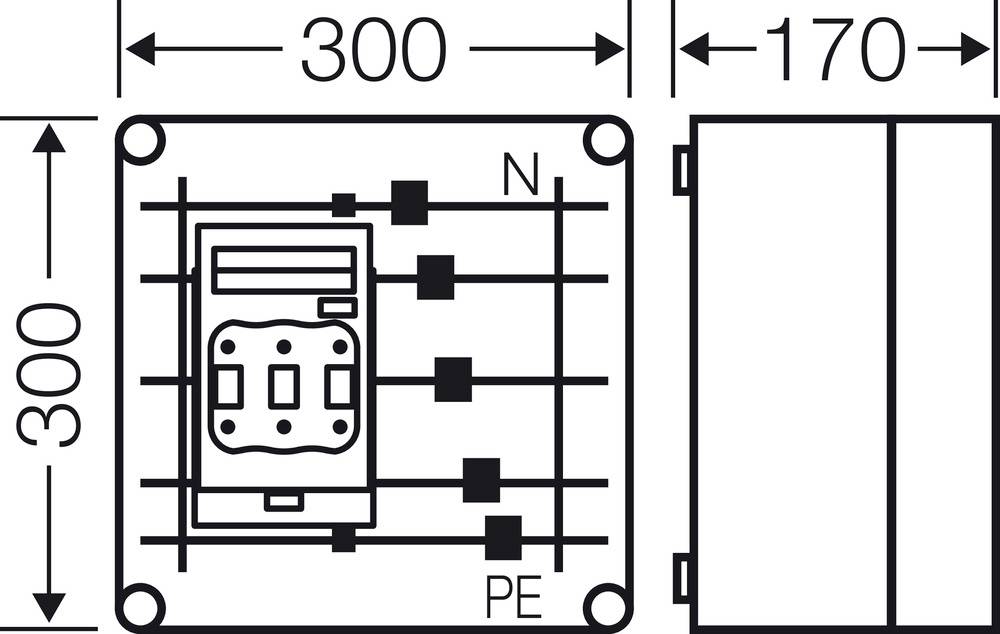

(W x H x D) 300 x 300 x 170 mm
- Depth
170 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1826904 Hensel 2000643 Mi 6226 Switchboard cabinet Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1826904 Hensel 2000643 Mi 6226 Switchboard cabinet Content 1 pc(s)
Description
Fuse switch disconnectors housing MI 6226 Mi-NH
This text is machine translated.
This text is machine translated.
Features
- Cable terminals: 25-70 mm², Cu, round conductor connection wiring band Mi VS 100/160/250
- Outgoing terminals: 4-35mm ², Cu, round conductor PE and N terminals: each 1 x 4-35mm ², Cu, round conductor connection
- Wiring Band Mi VS 100/160
- N-conductor with the same current carrying capacity as the outer conductor
- Outlet at the top, can be changed on outlet at the bottom
- With touch protection
- Lid for tool actuation
- Material: PC (polycarbonate)
- II protection rating
- Color: gray, RAL 7035
