Hensel 2000651 Mi 6352 Switchboard cabinet Surface-mount Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Mounting type
Surface-mount
Width
300 mm
Height
450 mm
Depth
170 mm
Technical specifications
- Attachment option: Yes
- Rated current rail system 250 A.
- Short-circuit strength 30 kA
- Equipped with bus bar: Yes
- With transparent cover: Yes
- Number of pins: 5
- Protection system: IP65
- Housing material: Plastic
- Product type
Switchboard cabinet
- with PE and N terminals
No
- Mounting type
Surface-mount
- Factory colour
Grey
- Width
300 mm
- Height
450 mm
- Dim

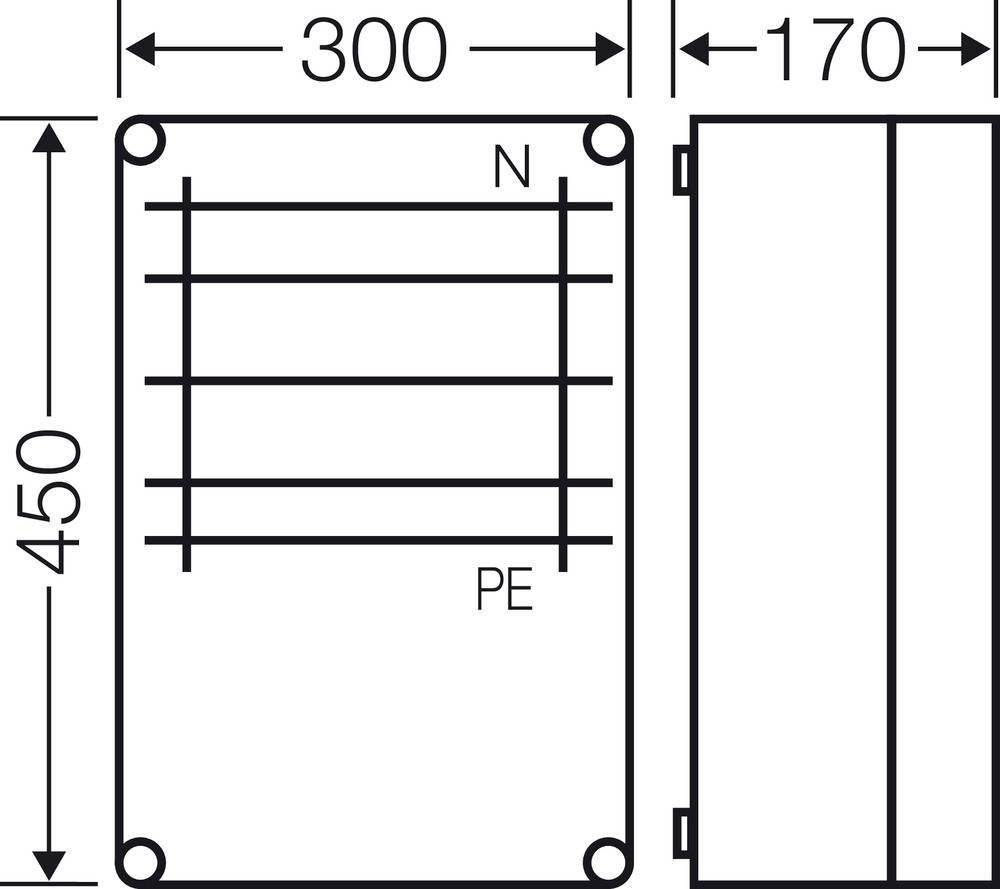

(W x H x D) 300 x 450 x 170 mm
- Depth
170 mm
- Content
1 pc(s)
- Short-circuit withstand rating (Icw)
30 kA
- Weight
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296308 Hensel 2000651 Mi 6352 Switchboard cabinet Surface-mount Content 1 pc(s)
Description

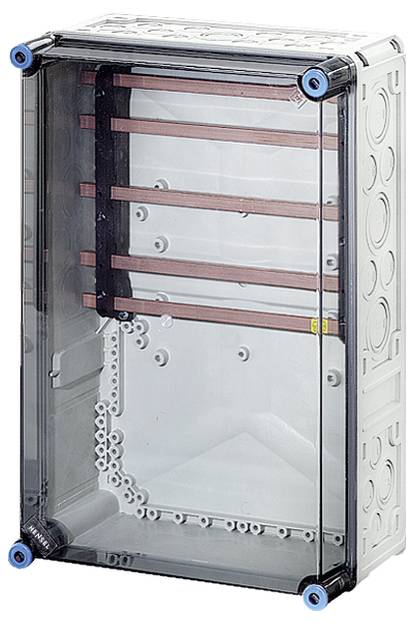

Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Housing with busbars, without device, without terminals. Lid closures for tool actuation.
