Hensel 2000662 Mi 6436 Switchboard cabinet Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Width
600 mm
Height
300 mm
Depth
170 mm
with PE and N terminals
Yes
Datasheet (PDF)
Highlights & Details
Hensel busbar housing MI 6436
- 3 x fuse switch disconnectors 160A, NH00, 3-pin
- Rated current of the busbar 250A
- Number of circuits 3
Technical specifications
- Product type
Switchboard cabinet
- with PE and N terminals
Yes
- Factory colour
Grey-white (RAL 7035)
- Width
600 mm
- Height
300 mm
- Dim

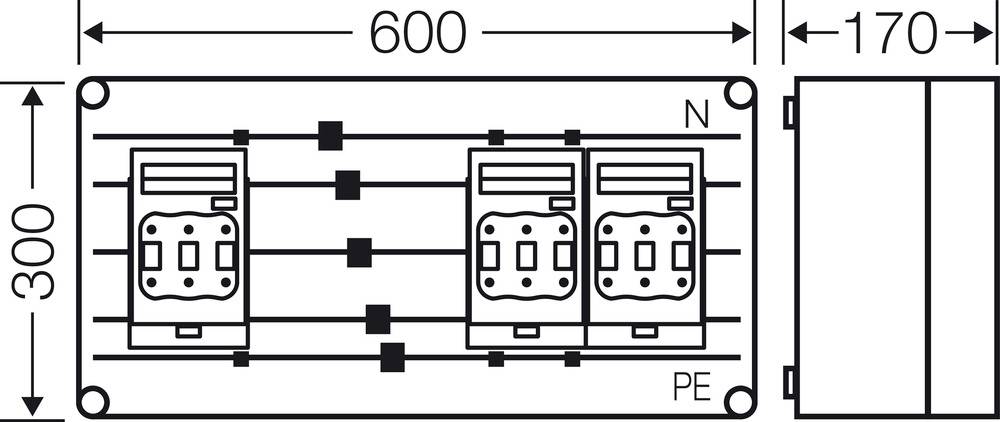

(W x H x D) 600 x 300 x 170 mm
- Depth
170 mm
- Mounting
3 x fuse switch disconnectors 160A, NH00, 3-pin
- Content
1 pc(s)
- Weight
10146.00
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1826967 Hensel 2000662 Mi 6436 Switchboard cabinet Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1826967 Hensel 2000662 Mi 6436 Switchboard cabinet Content 1 pc(s)
Description
Busbar housing MI 6436
This text is machine translated.
This text is machine translated.
Features
- Cable terminals: 25-70 mm², Cu, round conductor connection wiring band Mi VS 100/160/250
- Outgoing terminals: 4-35mm ², Cu, round conductor PE and N terminals: 3 x each 4-35mm ², Cu, round conductor connection
- Wiring Band Mi VS 100/160
- N-conductor with the same current carrying capacity as the outer conductor
- Exits at the top, can be changed on exits the bottom
- With touch protection
- Lid for tool actuation
- Material: PC (polycarbonate)
- II protection rating
- Color: gray, RAL 7035
- Rated voltage of the device UN = 690 V a.c.
- Rated current of the device 160A
- Rated current of a circuit Inc=128A to prove the warming according to DIN EN 61439-1, paragraph 10.10.4
