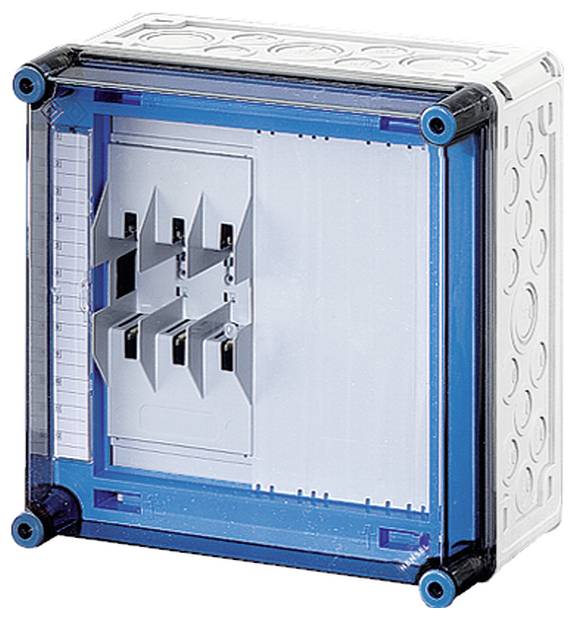

Hensel 2000728 NH fuse holder 125 A
EAN:
Part number:
Item no:
Product type
NH fuse holder
Nominal current - rounded value
125 A
Number of pins
3
Nominal current
125 A

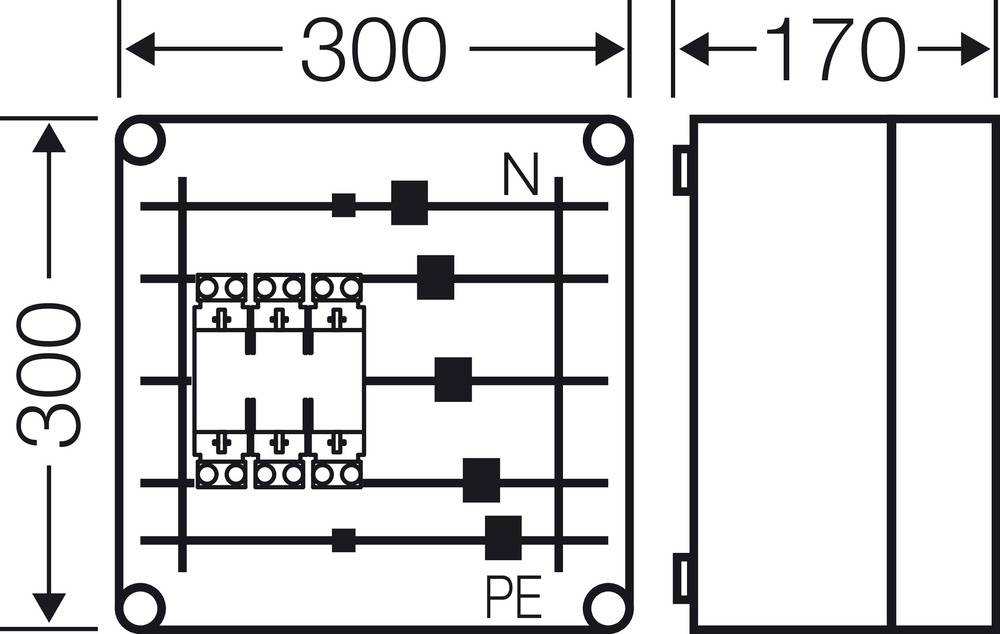

Dim
(W x H x D) 300 x 300 x 170 mm
Technical specifications
- Attachment option: Yes
- Number of groups: 1
- With transparent cover: Yes
- Placement on rail system: universal
- Protection system: IP65
- Housing material: Plastic
- Product type
NH fuse holder
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Number of pins
3
- Dim
(W x H x D) 300 x 300 x 170 mm
- Content
1 pc(s)
- Suitable for
Fuse size 000 - 4
- Width
300 mm
- Height
300 mm
- Depth
170 mm
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297282 Hensel 2000728 NH fuse holder 125 A
Description
Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Housing with fuse sections NH00, 3-pin, according to IEC 60269 on busbars. With feed terminals, PE and N terminals and touch protection. Lid closures for tool actuation.
