Hensel 2000736 NH fuse holder Fuse size = 0 3-pin 125 A 800 V
Product type
NH fuse holder
Fuse size
0
Nominal current - rounded value
125 A
Number of pins
3
Nominal voltage
800 V
EAN:
Part number:
Item no:
Technical specifications
- Fuse switch disconnector housing equipment: With fuse switch disconnector
- Rated insulation voltage 690 V.
- Protection system: IP65
- Product type
NH fuse holder
- Fuse size
0
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Number of pins
3
- Nominal voltage
800 V

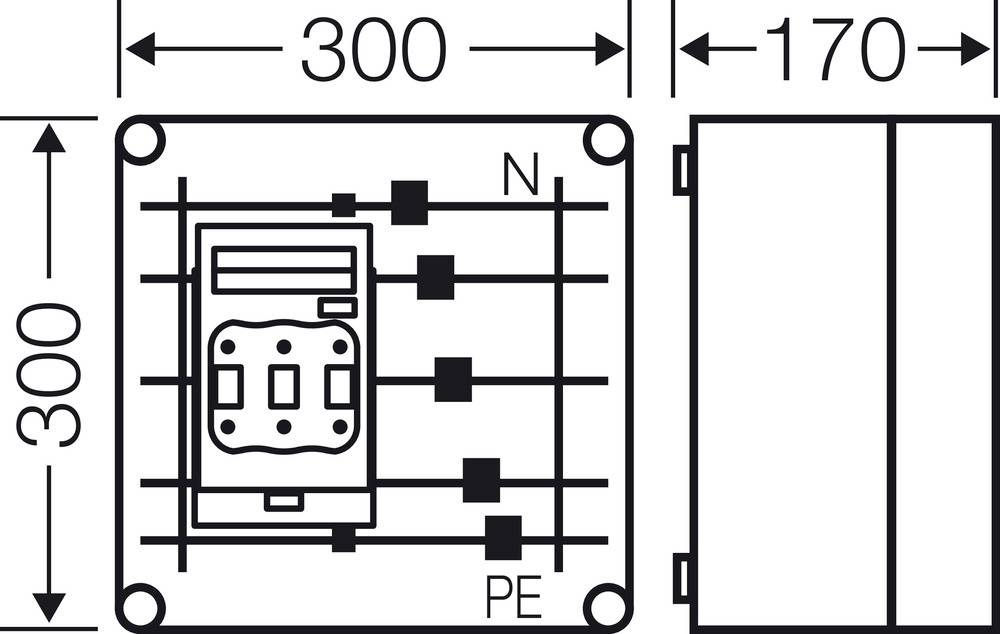

- Dim
(W x H x D) 300 x 300 x 170 mm
- Model
3-phase
- Content
1 pc(s)
- Suitable for
Fuse size 000 - 4
- Width
300 mm
- Height
300 mm
- Depth
170 mm
- RoHS-compliant
Yes
- Weight
0
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2292054 Hensel 2000736 NH fuse holder Fuse size = 0 3-pin 125 A 800 V
Description

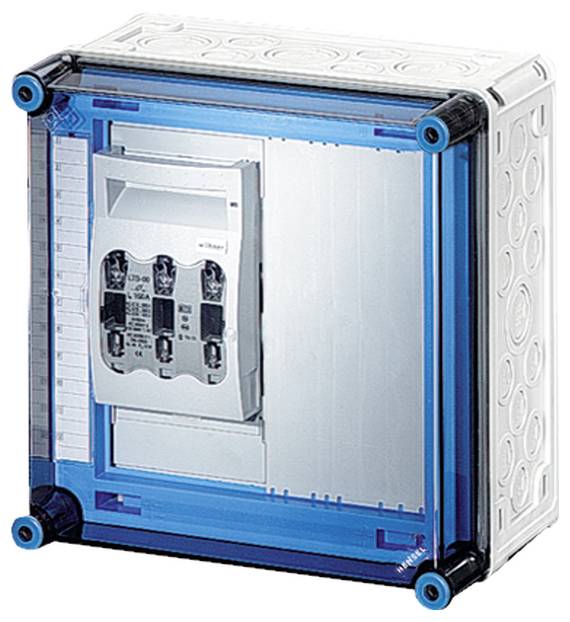

Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Housing with NH 00 fuse switch disconnector, 3-pole, according to IEC 60947-3 on busbars. With feed terminals, PE and N terminals and touch protection. Connection direction can be changed. Lid closures for tool actuation.
