Hensel 2000783 NH fuse holder Fuse size = 1 3-pin 250 A 800 V
Product type
NH fuse holder
Fuse size
1
Nominal current - rounded value
250 A
Number of pins
3
Nominal voltage
800 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Fuse switch disconnector housing equipment: With fuse switch disconnector
- Rated insulation voltage 690 V.
- Protection system: IP65
- Product type
NH fuse holder
- Fuse size
1
- Nominal current
250 A
- Nominal current - rounded value
250 A
- Number of pins
3
- Nominal voltage
800 V

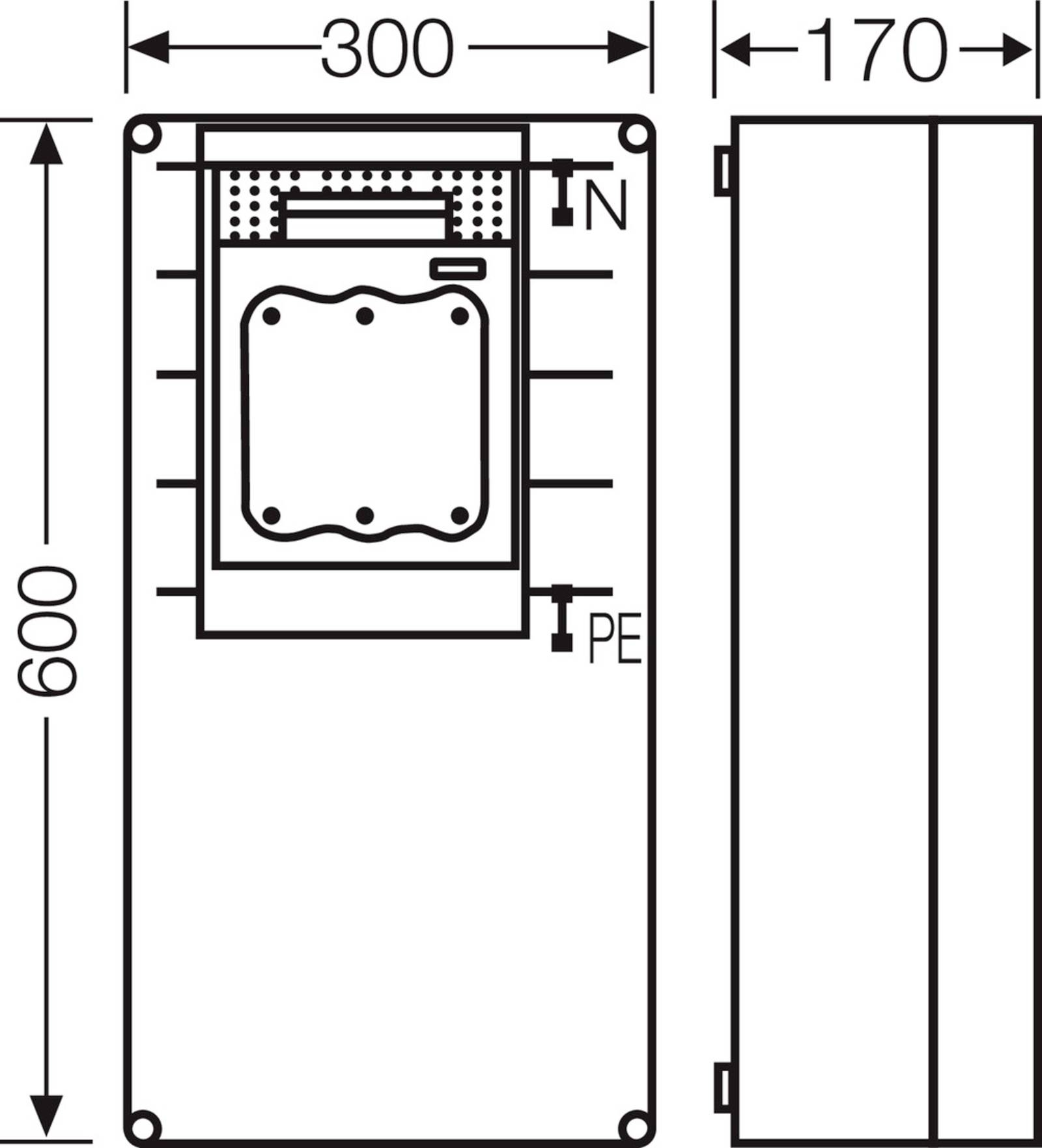

- Dim
(W x H x D) 300 x 600 x 214 mm
- Factory colour
Multicolour
- Content
1 pc(s)
- Suitable for
Fuse size 000 - 4
- Width
300 mm
- Height
600 mm
- Depth
214 mm
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2293039 Hensel 2000783 NH fuse holder Fuse size = 1 3-pin 250 A 800 V
User & Safety Instructions
User & Safety Instructions 2293039 Hensel 2000783 NH fuse holder Fuse size = 1 3-pin 250 A 800 V
Description

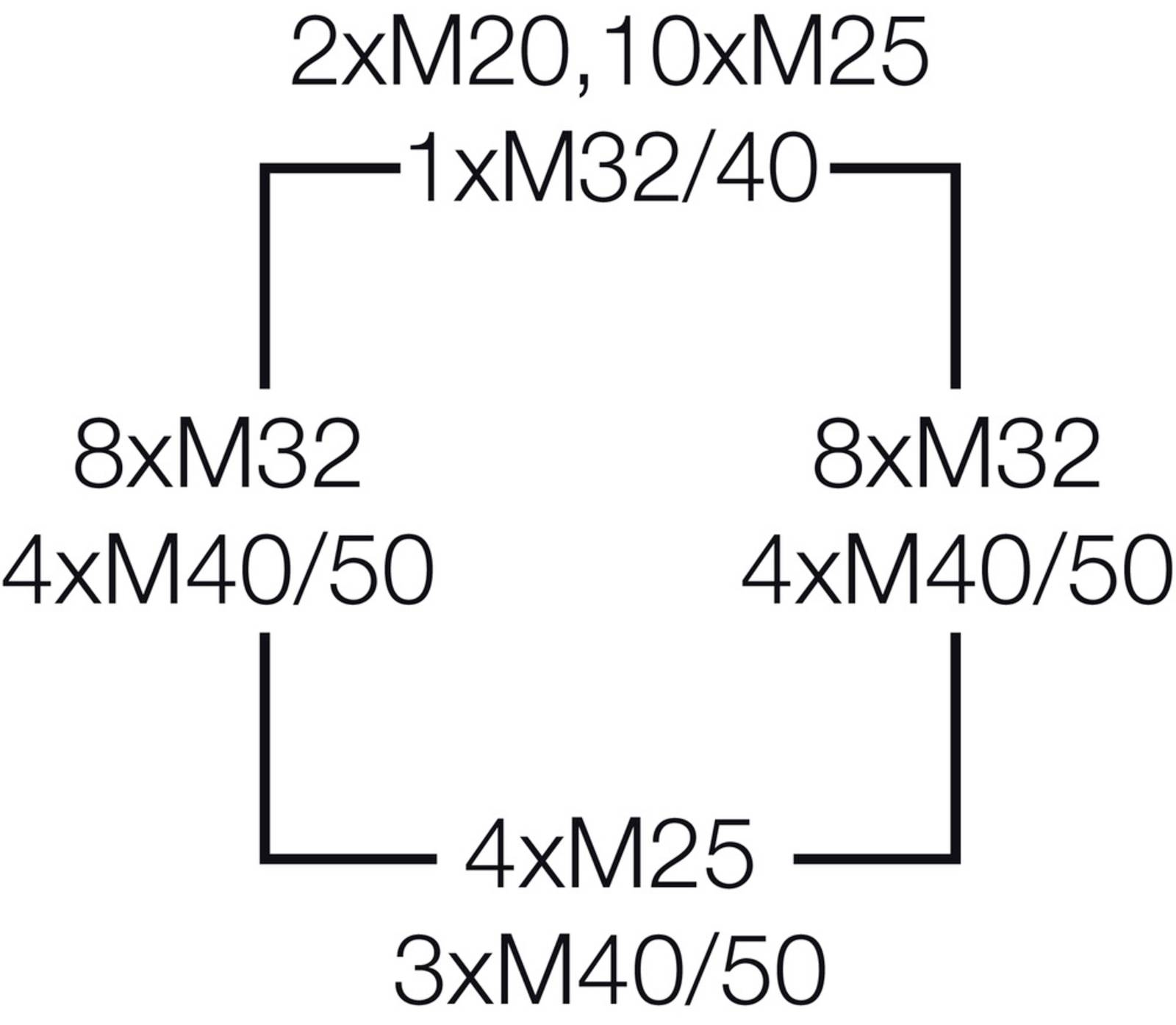

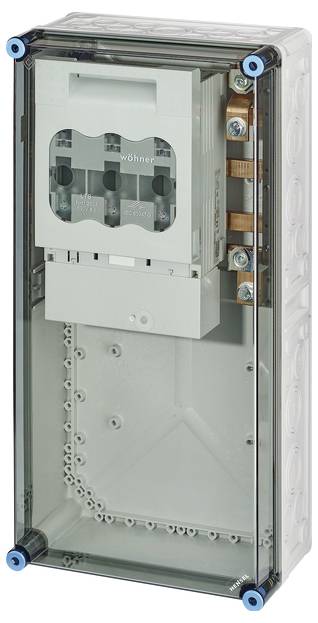

Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Housing with NH 1 fuse switch disconnector, 3-pole, according to IEC 60947-3 on busbars. Without supply terminals. With PE and N terminals. Connection direction can be changed. Lid closures for tool actuation.
