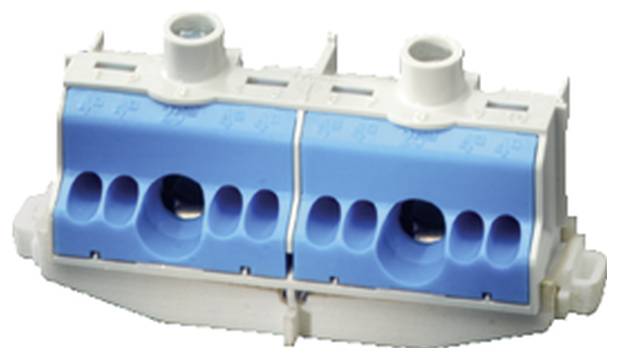

Hensel 26001204 Terminal Screws, Jack connector Blue 1 pc(s)
Product type
Terminal
Connection
Screws
Jack connector
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
25 mm²
Nominal current - rounded value
101 A
EAN:
Part number:
Item no:
Highlights & Details
Hensel N terminal FC N 10
- FC N 10
Technical specifications
- Design: N-clamp
- Connectable conductor cross-section: Fine strand with wire-end sleeve: 6..25 mm²
- Connectable conductor cross-section multi-strand 2..25 mm²
- Connection position: Lateral
- Number of terminal points per pole: 10
- Operating temperature: 40 °C
- Width/pitch 86 mm
- Height with low mounting type 43 mm
- Mounting type: DIN rail TH35
- Material of the insulating body: Thermoplastic
- Product type
Terminal
- Features
NS 32/35 rail mount
- Connection
Screws
Jack connector
- Cross section (flexible) (min.)
2 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
2 mm²
- Cross section (inflexible) (max.)
25 mm²
- Clamp width
86 mm
- Number of pins
1
- Factory colour
Blue
- Nominal current
101 A
- Nominal current - rounded value
101 A
- Nominal voltage
690 V
- Manufacturer part #
26001204
- Content
1 pc(s)
- Type
FC N 10

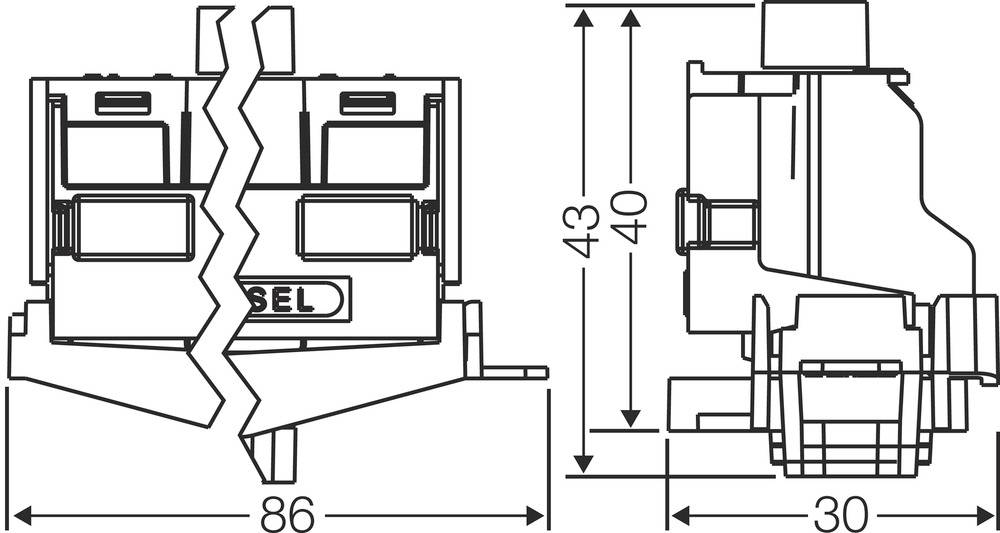

- Dim
(L x W x H) 86 x 86 x 43 mm
- Width
86 mm
- Height
43 mm
- Length
86 mm
- Connector colour
Blue
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297853 Hensel 26001204 Terminal Screws, Jack connector Blue 1 pc(s)
Description
FIXCONNECT-N terminal 2 x 25 mm², 8 x 4 mm², Cu for mounting on mounting rail.
