Hensel 2600136 Tap terminal Screws 1 pc(s)
Packaging type
Piece
Product type
Tap terminal
Connection
Screws
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
25 mm²
EAN:
Part number:
Item no:
Highlights & Details

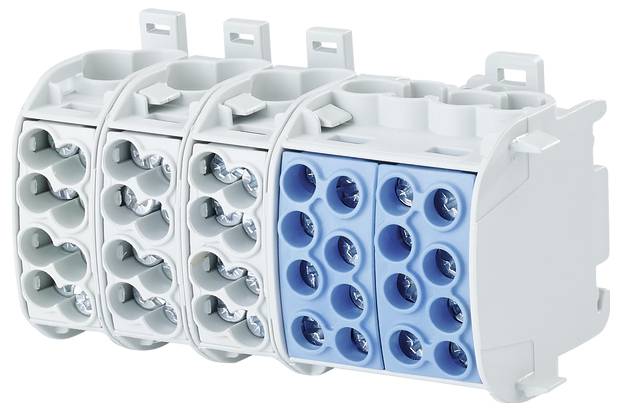

Hensel main conductor branch terminal 4pol. KKL 48
- KKL 48
Technical specifications
- Design: Main conductor branch terminal
- Number of ports less than 6 mm²: 4
- Number of connections 10 mm²: 4
- Number of connections 16 mm²: 4
- Number of connections 25 mm²: 4
- Total number of connections: 16
- Touch-proof: Yes
- Mounting type: DIN rail/screw
- Depth: 39 mm
- Packaging type
Piece
- Product type
Tap terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
25 mm²
- Number of pins
4
- Manufacturer part #
2600136
- Content
1 pc(s)
- Type
KKL 48
- Dim
(W x H) 81 mm x 56 mm
- Width
81 mm
- Height
56 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295043 Hensel 2600136 Tap terminal Screws 1 pc(s)
Description
Main branch terminal as connection or support point terminal, 1.5-25 mm², Cu. For mounting on mounting rail.
