Hensel 36000166 Cable gland with locknut, with strain relief, shockproof Plastic Black 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M16
Type
straight
Material
Plastic
Clamp Ø
3 mm
Technical specifications
- Type of seal: Sealing ring that can be cut out
- Cable gland: no.
- Suitable for cable diameters of 3 to 10 mm
- Metric thread size: 16
- Thread pitch 2 mm
- Surface: Untreated
- Hexagonal corner dimensions 22 mm
- Material quality: Polyamide (PA)
- Product type
Cable gland
- Features
with locknut
with strain relief
shockproof
- Factory colour
Black
- External thread
M16
- Type
straight
- Material
Plastic
- Clamp Ø
3 mm
- Terminal Ø (max.)
10 mm
- Thread length
8 mm
- Min. temperature
-25 °C
- Max. temperature
+70 °C
IP67
- Spanner size
20 mm
- Dimensions
22 mm
- Halogen-free
Yes
- Content
1 pc(s)
- Dim
22
- RoHS-compliant
Yes
- Manufacturer part #
36000166
- Type
ASS 16
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296350 Hensel 36000166 Cable gland with locknut, with strain relief, shockproof Plastic Black 1 pc(s)
Description

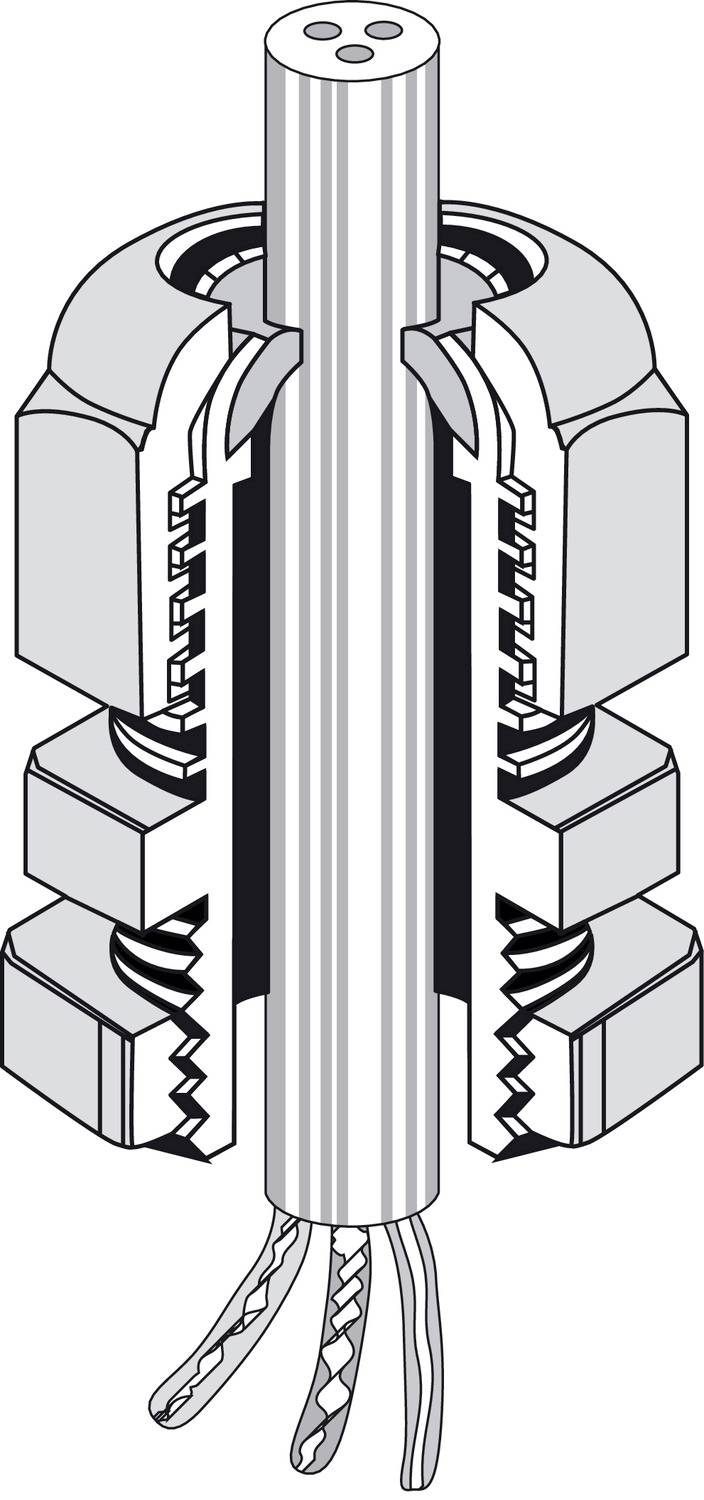

Mounting cable connection for pre-embossing M 16 and sealing range Ø 3-10 mm.
