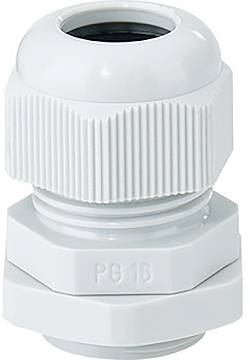

Image similar
Hensel 3600068 Cable gland 1 pc(s)
Product type
Mounting supports
External thread
PG16
Material
Polyamide
Clamp Ø
10 mm
Terminal Ø (max.)
14 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Straight
- Material: Plastic
- Colour: grey
- RAL number: 7035
- Protection class (IP) IP65
- Surface protection: Untreated
- Thread type: PG
- Halogen-free: Yes
- Width 27 mm
- Material quality: Polyamide (PA)
- Thread length: 10 mm
- Operating temperature -25..70°C
- With strain relief: Yes
- Impact-resistant: Yes
- Thread dimension metric/PG: 16
- Hexagonal width 29.5 mm
- Suitable for cable diameter 10..14 mm
- Bend protection: No.
- With locknut: Yes
- Multiple sealing application: No.
- Flat cable screwing: No.
- Type of seal: Sealing ring
- Separable screw connection: No
- Explosion-tested version: No.
- For Ex-zone gas: Without
- For Ex-Zone Dust: Without
- Thread dimension in inch NPT/gas pipe thread: Other
- Glass-fiber reinforced: No.
- Product type
Mounting supports
- Features
with strain relief
- External thread
PG16
- Material
Polyamide
- Clamp Ø
10 mm
- Terminal Ø (max.)
14 mm
- Thread length
10 mm
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Spanner size
27 mm
- Dimensions
29.5 mm
- Halogen-free
Yes
- Content
1 pc(s)
- Dim
29.5
- Manufacturer part #
3600068
- Type
AKS 16
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549651 Hensel 3600068 Cable gland 1 pc(s)
Description
Mounting cable supports for preprinted PG 16 and sealing range Ø 10-14 mm.
