Hensel 36001078 Cable gland shockproof, with locknut, with strain relief, with seal M20 Plastic Grey 1 pc(s)

EAN:
Part number:
Item no:

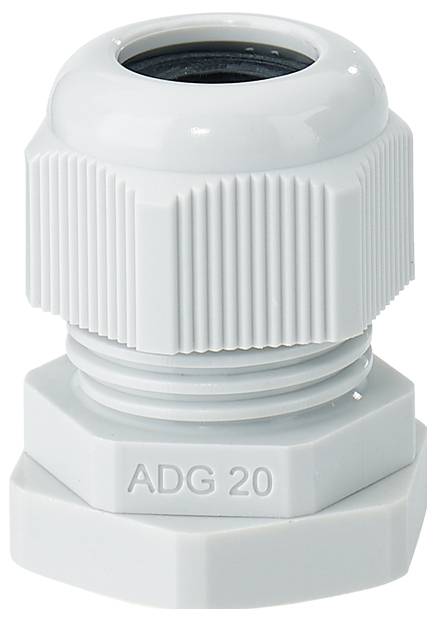

Grey cable gland insert with hexagonal nut and knurled thread, marked with 'ADG 20' for cable securing.

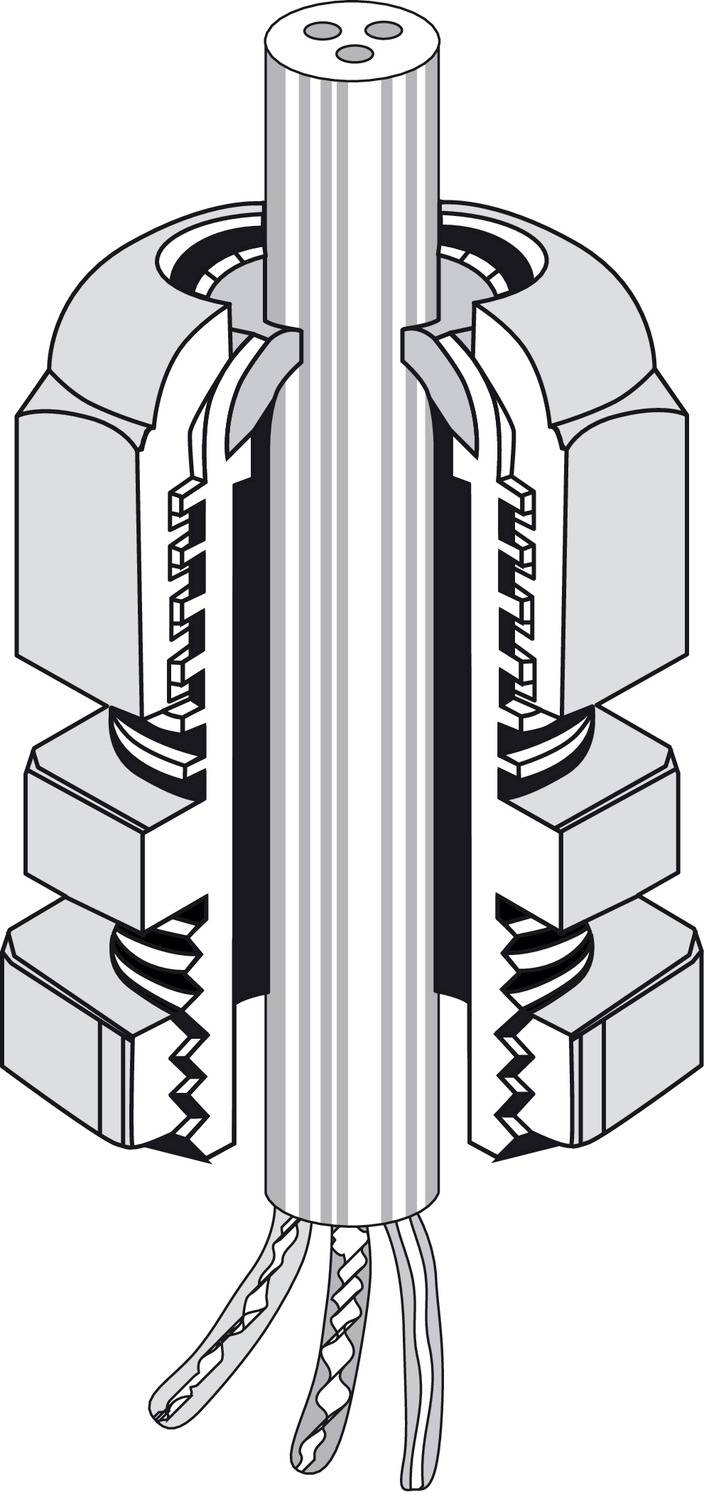

Schematic representation of a plug with open clamping jaws holding a cable. Shows the internal structure and connection.
1/2
Product type
Cable gland
External thread
M20
Type
straight
Material
Plastic
Clamp Ø
5 mm
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Thread pitch 1.5 mm
  • Hexagonal width 26.5 mm
  • Material quality: Polyamide (PA)
Product type

Cable gland

Features

shockproof

with locknut

with strain relief

with seal

Factory colour

Grey

External thread

M20

Type

straight

Material

Plastic

Clamp Ø

5 mm

Terminal Ø (max.)

13 mm

Thread length

8 mm

Min. temperature

-25 °C

Max. temperature

+40 °C

IP66

Spanner size

24 mm

Halogen-free

Yes

Content

1 pc(s)

RoHS-compliant

Yes

Manufacturer part #

36001078

Type

ADG 20

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3332561 Hensel 36001078 Cable gland shockproof, with locknut, with strain relief, with seal M20 Plastic Grey 1 pc(s)
