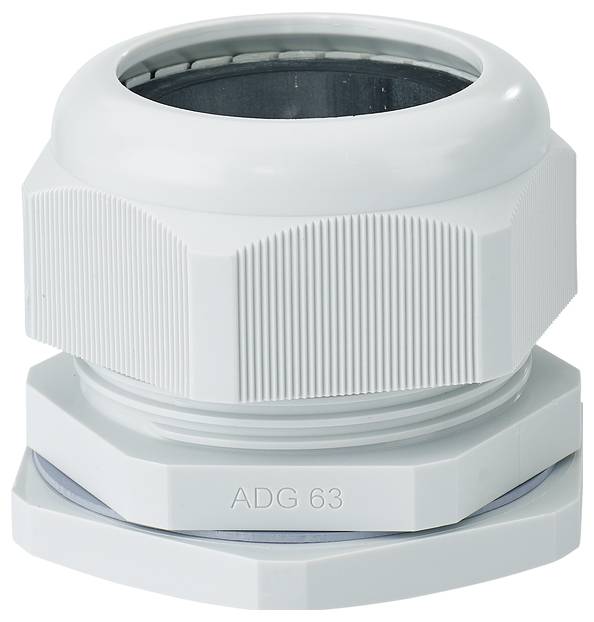

Hensel 36001083 Cable gland shockproof, with locknut, with strain relief, with seal M63 Plastic Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M63
Type
straight
Material
Plastic
Clamp Ø
35 mm
Technical specifications
- Thread pitch 1.5 mm
- Hexagonal width 74.7 mm
- Material quality: Polyamide (PA)
- Product type
Cable gland
- Features
shockproof
with locknut
with strain relief
with seal
- Factory colour
Grey
- External thread
M63
- Type
straight
- Material
Plastic
- Clamp Ø
35 mm
- Terminal Ø (max.)
42 mm
- Thread length
12 mm
- Min. temperature
-25 °C
- Max. temperature
+40 °C
IP66
- Spanner size
68 mm
- Halogen-free
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
36001083
- Type
ADG 63
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3332584 Hensel 36001083 Cable gland shockproof, with locknut, with strain relief, with seal M63 Plastic Grey 1 pc(s)
